General Description
M66008FP General Description
The M66008 is a semiconductor integrated circuit providing the 16-bit serial input-parallel output and parallel input-serial output shift register function.
Independent built-in registers for serial input-parallel output and parallel input-serial output enable serial input data to be read into a shift register during output of serial data converted from parallel data. In addition, parallel data input/output pin can be placed in input or output mode in bits.
The M66008 is widely applicable to I/O port extension for MCU, data communication of serial bus system, etc.
M66008FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vcc | Supply voltage |
-0.5to +7.0 |
V | |
| VI | Input voltage |
-0.5toVcc+0.5 |
V | |
| Vo | Output voltage |
-0.5toVcc+0.5 |
V | |
| IIK | Input protection diode current | VI<0V |
-20 |
mA |
| VI>Vcc |
20 | |||
| Iok | Output parasitic diode current | Vo<0V |
-20 |
mA |
| Vo>Vcc |
20 | |||
| IGND | Current/GND | GND |
-64 |
mA |
| Tstg | Storage temperature |
-65 to +150 |
°C |
M66008FP Features
• Two-way serial data communication with MCU
• Reading of serial data during parallel-serial data conversion
• Division of I/O bit in parallel data input/output
• Low power consumption of 50 W/package maximum
(Vcc=5V, Ta=25°C at time of standstill)
• Schmitt triggered input (DI, CLK,S,CS)
• Open drain output (DO, D1~D16)
• With parallel data input/output (D1~D16)
• Wide operating supply voltage range (Vcc=2~6V)
• Wide operating temperature range (Ta=20~75°C)
M66008FP Typical Application
Parallel/serial data conversion for MCU periphery, serial bus control by parallel/serial data conversion MCU, etc.

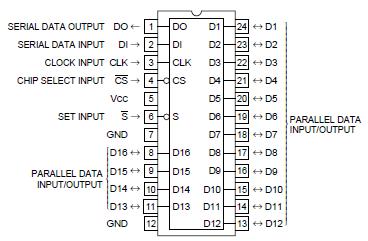

M66008FP Connection Diagram
M66008FP
PDF/DataSheet Download
- Datasheet: M66008FP
- File Size: 109596 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
