Purchase M66305AFP, In-stock M66305AFP From SeekIC.
MFG:MIT
Part Number: M66305AFP
MFG: MIT
Description: M66305A Toggle Line Buffer has two 5,120-bit line buffer memories. It takes in serial data that arrive...
- Table of contents:
M66305AFP
-
Suppliers
DataSheet
General Description
M66305AFP General Description
M66305A Toggle Line Buffer has two 5,120-bit line buffer memories. It takes in serial data that arrives synchronously
with clock pulses and outputs it in serial at a rate of up to 10 Mbits per second synchronously with external clock pulses.
This buffer employs the double buffer system: While data is being output, data on the next line can be written on the other line buffer memory.
M66305AFP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vcc | Supply voltage |
-0.5to +7.0 |
V | |
| VI | Input voltage |
-0.5 to VCC+0.5 |
V | |
| Vo | Output voltage |
-0.5 to VCC+0.5 |
V | |
| Pd | Power dissipation |
mounted |
700 |
mW |
| Tstg | Storage temperature |
-65 to +150 |
°C |
M66305AFP Features
• 5,120 × 1bit serial input-serial output line buffer memories
• Data transmission at 10 megabits/second maximum
• Two line buffer memories can be alternated by external toggle signal.
• Memory capacity can be doubled by cascade connection.
• Because of cascade input pin (CAS1), output potential after completion of output can be set to either H or L.
• Low noise and high fan-out output (IO = ±24mA guaranteed)
• Every input pin has built-in Schmidt trigger circuit.
• Read counter and write counter can be reset independently.
• RESET, T, CNTRST1and CNTRST2are equipped with negative noise reduction circuit.
M66305AFP Typical Application
Data buffer between industrial or home-use image data processing system and peripheral equipment

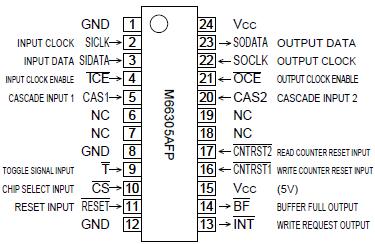

M66305AFP Connection Diagram
M66305AFP
PDF/DataSheet Download
- Datasheet: M66305AFP
- File Size: 89097 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
