Purchase M66515FP, In-stock M66515FP From SeekIC.
MFG:MIT
Part Number: M66515FP
MFG: MIT
Description: The M66515 is a semiconductor laser-diode driver/controller.Its functions are the driving and laser po...
- Table of contents:
M66515FP
-
Suppliers
DataSheet
General Description
M66515FP General Description
The M66515 is a semiconductor laser-diode driver/controller.Its functions are the driving and laser power control of a specific type (Mitsubishi's N type laser) of semiconductor laser diode, in which the anode of a semiconductor laser diode is connected in stem structure to the cathode of a monitoring photodiode.
The IC has a laser drive current output pin of sink type and is capable of driving a laser diode on a maximum bias current of 30mA and a maximum switching current of 120mA, which is switched at a rate of 40Mbit/s.
Since the M66515 has a built in sample-hold circuit, it is possible to realize an internal APC+ system that requires no external device for laser power control.
*: Automatic Power Control
M66515FP Maximum Ratings
|
Symbol |
Parameter |
Condition |
Ratings |
Unit | |
| Vcc | Supply voltage |
- |
0.5 to +7.0 |
V | |
| VI | Input voltage | CH,Vr |
- |
-0.3toVcc |
V |
| DATE, ENB, S/H |
- |
-0.3 to+0.7 | |||
| Vo | Output voltage | RO |
-
|
-0.3to0.7
|
V |
| Isw | Switching current |
- |
150 |
mA | |
| Pd | Power dissipation |
- |
1200 |
mA | |
| IB | Bias current |
Measured being mounted Ta = 25°C |
45 |
mW | |
| Tstg | Storage temperature |
- |
-60 to +150 |
| |
M66515FP Features
• Built-in sample-hold circuit for internal APC function
• High speed switching (40Mbps)
• Large drive current (150mA max.)
• Capable of setting bias current (30mA max.)
• 5V single power supply
• High speed switching (40Mbps)
• Large drive current (150mA max.)
• Capable of setting bias current (30mA max.)
• 5V single power supply

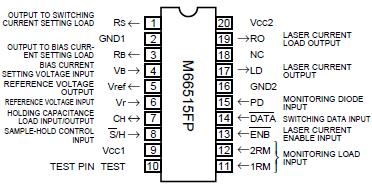

M66515FP Connection Diagram
M66515FP
