Purchase M66516FP, In-stock M66516FP From SeekIC.
MFG:MIT
Part Number: M66516FP
MFG: MIT
Description: The M66516 is a semiconductor laser-diode driver/controller.Its functions are the driving and laser po...
- Table of contents:
M66516FP
-
Suppliers
DataSheet
General Description
M66516FP General Description
The M66516 is a semiconductor laser-diode driver/controller.Its functions are the driving and laser power control of a specific type (Mitsubishi's R type laser) of semiconductor laser diode, in which the cathode of a semiconductor laser diode is connected in stem structure to the anode of a monitoring photodiode.
The IC has a laser drive current output pin of source type and is capable of driving a laser diode on a maximum bias current of 30mA and a maximum switching current of 120 mA, which is switched at a rate of 20Mbits/sec.
Since the M66516 has a built in sample-hold circuit, it is possible to realize an internal APC* system that requires no external device for laser power control.
*: Automatic Power Control
M66516FP Maximum Ratings
|
Symbol |
Parameter |
Condition |
Ratings |
Unit | |
| Vcc | Supply voltage |
- |
0.5 to +7.0 |
V | |
| VI | Input voltage | VL1, VL2, Vr |
- |
-0.3toVcc |
V |
| DATE, ENB, S/H |
- |
-0.3 to+0.7 | |||
| Vo | Output voltage | CO |
"H" Output |
-0.3to+5.5 |
V |
| RO |
"H" Output |
-0.3 to 7.0 | |||
| IL1 | Output current1 |
- |
-90 |
mA | |
| IL2 | Output current 2 |
- |
-90 |
mA | |
| Pd | Power dissipation |
- |
890 |
mA | |
| IB | Bias current |
Measured being mounted Ta = 25°C (Note 1) |
-45 |
mW | |
| Tstg | Storage temperature |
- |
-60 to +150 |
| |
M66516FP Features
• Built-in sample-hold circuit for APC function
• High speed switching (20Mbps)
• Large drive current (150mA max.)
• Capable of setting bias current (30mA max.)
• 5V single power supply
• High speed switching (20Mbps)
• Large drive current (150mA max.)
• Capable of setting bias current (30mA max.)
• 5V single power supply
M66516FP Typical Application
Semiconductor laser-diode applied equipment

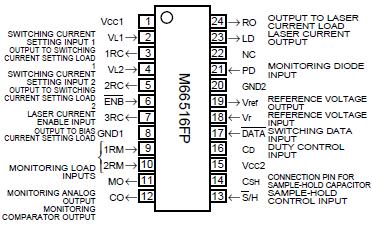

M66516FP Connection Diagram
