M68AF127B

Features:

SUPPLY VOLTAGE: 4.5 to 5.5V
128K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 55ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 2V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER

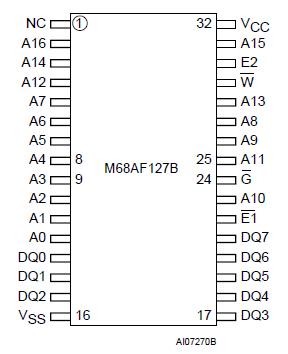

Pinout




Specifications

Symbol	Parameter	Value	Unit
IO (1)	Output Current	20	mA
TA	Ambient Operating Temperature	55 to 125	°C
TSTG	Storage Temperature	65 to 150	°C
VCC	Supply Voltage	0.5 to 6.5	V
VIO (2)	Input or Output Voltage	0.5 to VCC +0.5	V
PD	Power Dissipation	1	W

Description

The M68AF127B is a 1Mbit (1,048,576 bit) CMOS SRAM, organized as 131,072 words by 8 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 4.5 to 5.5V supply.

This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.

The M68AF127B is available in SO32, PDIP32,TSOP32 (8x13.4mm) and TSOP32 (8x20mm) packages.
