Part Number: M68AW127B
Description: The M68AW127B is a 1Mbit (1,048,576 bit) CMOS SRAM, organized as 131,072 words by 8 bits. The device f...
- Table of contents:
M68AW127B
-
Suppliers
DataSheet
General Description
M68AW127B General Description
The M68AW127B is a 1Mbit (1,048,576 bit) CMOS SRAM, organized as 131,072 words by 8 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.
The M68AW127B is available in SO32, TSOP32 8x20mm and TSOP32 8x13.4mm packages.
M68AW127B Maximum Ratings
| Symbol | Parameter | Value | Unit |
| IO(1) | Output Current | 20 | mA |
| TA | Ambient Operating Temperature | 55 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VCC | Supply Voltage | 0.3 to 4.6 | V |
| VIO(2) | Input or Output Voltage | 0.5 to VCC +0.5 | V |
| PD | Power Dissipation | 1 | W |
1. One output at a time, not to exceed 1 second duration.
2. Up to a maximum operating VCC of 3.6V only.
M68AW127B Features
SUPPLY VOLTAGE: 2.7 to 3.6V
128K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 70ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER
128K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 70ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER

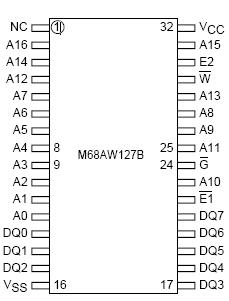

M68AW127B Connection Diagram
M68AW127B
PDF/DataSheet Download
- Datasheet: M68AW127B
- File Size: 280271 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
