General Description
M68AW127BNK General Description
The M68AW127B is a 1Mbit (1,048,576 bit) CMOS SRAM, organized as 131,072 words by 8 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.
The M68AW127B is available in SO32, TSOP32 8x20mm and TSOP32 8x13.4mm packages.
M68AW127BNK Maximum Ratings
|
Symbol |
Parameter |
RATINGS
|
Unit |
| IO(1) |
Output Current |
20 |
mA |
| TA |
Ambient Operating Temperature |
55 to 125
|
°C |
|
TSTG |
Storage Temperature |
65 to 150
|
°C |
| VCC |
Supply Voltage |
0.3 to 4.6
|
V |
|
VIO(2) |
Input or Output Voltage |
0.5 to VCC +0.5
|
V |
|
Pd |
Power Dissipation |
1
|
W |
M68AW127BNK Features
SUPPLY VOLTAGE: 2.7 to 3.6V
128K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 70ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER
128K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 70ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER

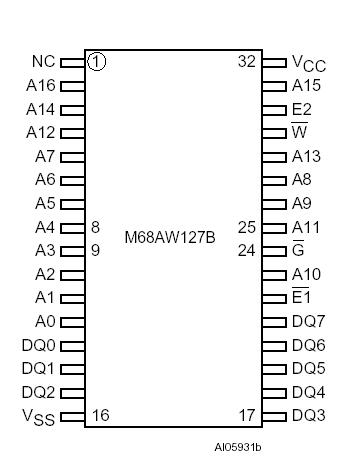

M68AW127BNK Connection Diagram
M68AW127BNK
