Part Number: M68AW128ML
Description: The M68AW128ML is a 2 Mbit (2,097,152 bit) CMOS SRAM, organized as 131,072 words by 16 bits. The devic...
- Table of contents:
M68AW128ML
-
Suppliers
DataSheet
General Description
M68AW128ML General Description
The M68AW128ML is a 2 Mbit (2,097,152 bit) CMOS SRAM, organized as 131,072 words by 16 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.3V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.
The M68AW128ML is available in TFBGA48 (0.75 mmpitch) and in TSOP44 Type II packages.
M68AW128ML Maximum Ratings
| Symbol | Parameter | Value | Unit |
| IO(1) | Output Current | 20 | mA |
| PD | Power Dissipation | 1 | W |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VCC | Supply Voltage | 0.3 to 4.6 | V |
| VIO(2) | Input or Output Voltage | 0.5 to VCC +0.5 | V |
| TA | Ambient Operating Temperature | 55 to 125 | °C |
2. Up to a maximum operating VCC of 3.3V only.
M68AW128ML Features
SUPPLY VOLTAGE: 2.7 to 3.3V
128K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN
128K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN

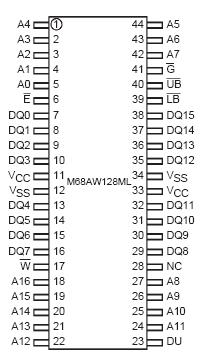

M68AW128ML Connection Diagram
M68AW128ML
PDF/DataSheet Download
- Datasheet: M68AW128ML
- File Size: 108374 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
