Part Number: M68AW256M
Description: The M68AW256M is a 4 Mbit (4,194,304 bit) CMOS SRAM, organized as 262,144 words by 16 bits. The device features fully s...
- Table of contents:
M68AW256M
-
Suppliers
DataSheet
General Description
M68AW256M General Description
The M68AW256M is a 4 Mbit (4,194,304 bit) CMOS SRAM, organized as 262,144 words by 16 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.The M68AW256 is available in TFBGA48 (0.75 mm pitch) and in TSOP44 Type II packages.
M68AW256M Maximum Ratings
| Symbol | Parameter | Value | Unit |
| IO(1) | Output Current | 20 | mA |
| TA | Ambient Operating Temperature | 55 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VCC | Supply Voltage | 0.5 to 4.6 | V |
| VIO(2) | Input or Output Voltage | 0.5 to VCC +0.5 | V |
| PD | Power Dissipation | 1 | W |
M68AW256M Features
SUPPLY VOLTAGE: 2.7 to 3.6V
256K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN
256K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN

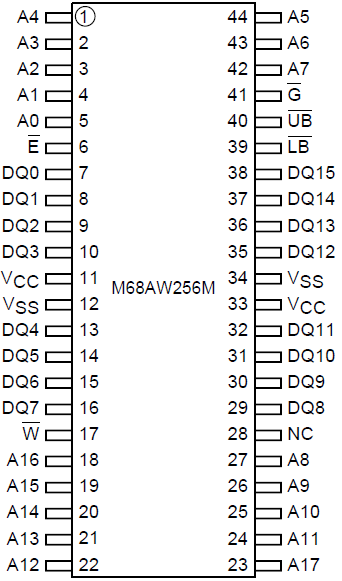

M68AW256M Connection Diagram
M68AW256M
