M68HC11K
-
Suppliers
DataSheet
General Description
M68HC11K General Description
The M68HC11K Family of high-performance microcontroller units (MCUs) offers a non-multiplexed expanded bus, high speed and low power consumption. The fully static design allows operation at frequencies from dc to 4 MHz.
This manual contains information concerning standard and custom-ROM (read-only memory) devices. Standard devices include those replacing the ROM with:
• Disabled ROM
• Disabled EEPROM (electrically erasable, programmable read-only memory)
• EPROM (erasable, programmable read-only memory)
• OTPROM (one-time progammable read-only memory)
Custom-ROM devices have a ROM array that is programmed at the factory to customer specifications.
M68HC11K Maximum Ratings
| Rating |
Symbol |
Value |
Unit |
| Supply voltage |
VDD |
0.3 to +7.0 |
V |
| Input voltage |
VIn |
0.3 to +7.0 |
V |
| Current drain per pin(1) excluding VDD, VSS, AVDD, VRH, and VRL |
ID |
25 |
mA |
| Storage temperature |
TSTG |
55 to +150 |
°C |
M68HC11K Features
M68HC11K Family features include:
• 8-bit opcodes and data
• 16-bit addressing
• Two 8-bit accumulators, which can be concatenated to form one 16-bit accumulator
• On-board memory:
24 Kbytes or 32 Kbytes of ROM, EPROM, or OTPROM
768 bytes or 1 Kbyte of static RAM (random-access memory)
640 bytes of EEPROM
128-byte register block
• Dual-function I/O lines - Any pins used for the microcontroller's
peripheral functions can be configured as general-purpose I/O lines.
• Non-multiplexed address and data buses
• 68HC11K4 offers:
1 Mbyte of address space, using on-chip memory mapping logic
Four programmable chip selects (expanded modes)
• 16-bit timer system:
Three input capture (IC) channels, record event timing by
storing the value of the timing system's 16-bit free-running
counter when an input signal transition occurs.
Four output compare (OC) channels, provide timed outputs by
signaling when the free-running counter reaches a predetermined number.
One IC or OC channel (software selectable)
• 8-bit pulse accumulator
• Four 8-bit pulse-width modulation (PWM) outputs
• Enhanced asynchronous serial communications interface (SCI)
• 8-bit opcodes and data
• 16-bit addressing
• Two 8-bit accumulators, which can be concatenated to form one 16-bit accumulator
• On-board memory:
24 Kbytes or 32 Kbytes of ROM, EPROM, or OTPROM
768 bytes or 1 Kbyte of static RAM (random-access memory)
640 bytes of EEPROM
128-byte register block
• Dual-function I/O lines - Any pins used for the microcontroller's
peripheral functions can be configured as general-purpose I/O lines.
• Non-multiplexed address and data buses
• 68HC11K4 offers:
1 Mbyte of address space, using on-chip memory mapping logic
Four programmable chip selects (expanded modes)
• 16-bit timer system:
Three input capture (IC) channels, record event timing by
storing the value of the timing system's 16-bit free-running
counter when an input signal transition occurs.
Four output compare (OC) channels, provide timed outputs by
signaling when the free-running counter reaches a predetermined number.
One IC or OC channel (software selectable)
• 8-bit pulse accumulator
• Four 8-bit pulse-width modulation (PWM) outputs
• Enhanced asynchronous serial communications interface (SCI)

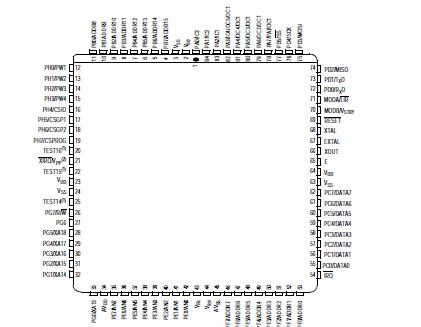

M68HC11K Connection Diagram
M68HC11K
