Part Number: M68Z512W
Description: The M68Z512W is a 4Mbit (4,194,304 bit) CMOS SRAM, organized as 524,288 words by 8 bits. The device fe...
- Table of contents:
M68Z512W
-
Suppliers
DataSheet
General Description
M68Z512W General Description
The M68Z512W is a 4Mbit (4,194,304 bit) CMOS SRAM, organized as 524,288 words by 8 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal ad- dress access and cycle times. It requires a single 3V ±10% supply, and all inputs and outputs are TTL compatible.
This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.
The M68Z512W is available in a 32-lead TSOP II (10 x 20mm) package.
M68Z512W Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature | 0 to 70 | |
| TSTG(1) | Storage Temperature | 65 to 150 | |
| VIO(2) | Input or Output Voltage | 0.3 to VCC + 0.3 | V |
| VCC | Supply Voltage | 0.3 to 4.6 | V |
| IO(3) | Output Current | 20 | mA |
| PD | Power Dissipation | 1 | W |
Note: 1. Reflow at peak temperature of 215°C to 225°C for < 60 seconds (total thermal budget not to exceed 180°C for between 90 and 120 seconds).
2. Up to a maximum operating VCC of 3.6V only.
3. One output at a time, not to exceed 1 second duration.
M68Z512W Features
` ULTRA LOW DATA RETENTION CURRENT
400nA (typical)
10µA (max)
` OPERATION VOLTAGE: 2.7 TO 3.6V
` 512 Kbit x 8 SRAM WITH OUTPUT ENABLE
` EQUAL CYCLE and ACCESS TIMES: 70ns
` LOW VCC DATA RETENTION: 1V
` TRI-STATE COMMON I/O
` CMOS FOR OPTIMUM SPEED/POWER
` AUTOMATIC POWER-DOWN WHEN DESELECTED
` INTENDED FOR USE WITH ST ZEROPOWER® AND TIMEKEEPER® SUPERVISORS
400nA (typical)
10µA (max)
` OPERATION VOLTAGE: 2.7 TO 3.6V
` 512 Kbit x 8 SRAM WITH OUTPUT ENABLE
` EQUAL CYCLE and ACCESS TIMES: 70ns
` LOW VCC DATA RETENTION: 1V
` TRI-STATE COMMON I/O
` CMOS FOR OPTIMUM SPEED/POWER
` AUTOMATIC POWER-DOWN WHEN DESELECTED
` INTENDED FOR USE WITH ST ZEROPOWER® AND TIMEKEEPER® SUPERVISORS

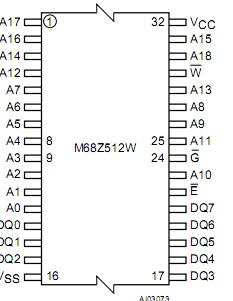

M68Z512W Connection Diagram
M68Z512W
