General Description
M69897VP General Description
The M69897VP multiplexer chip is an integrated serialization SONET OC-48 (2.488 Gbps) interface device. The chip performs parallel-to-serial functions in conformance with SONET/SDH transmission standards. The device is suitable for SONET-based ATM applications.
The merits of SOI (Silicon-On-Insulator) technology, such as low voltage operation, low substrate noise and good compatibility with standard CMOS technology, are fully utilized in the chip design to achieve low jitter and low power operation and small package outline of 64-pin PQFP.
M69897VP Maximum Ratings
| PARAMETER | MIN | TYP | MAX | UNITS |
| Storage Temperature | -65 | 150 | ûC | |
| Voltage on VDD with Respect to GND | -0.5 | 2.2 | V | |
| Voltage on any PECL Pin | 0 | 2.2 | V | |
| ESD Rating (HBM model) | 1000 | V |
M69897VP Features
· Single 1.8 V power supply
· Supports 2.488 Gbps (OC-48, STM-16)
·16-bit single-ended PECL interface
·On-chip high-frequency PLL for clock generation
·155.52 MHz reference frequency
·Low power consumption
·Available in 64 PQFP
·Parity check function
M69897VP Typical Application
- SONET/SDH systems
- Fiber optic systems
- High-speed back plane interconnect and point-to-point data links

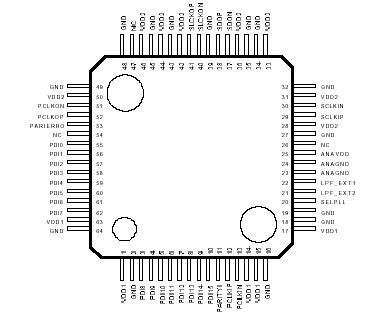

M69897VP Connection Diagram
M69897VP
