Part Number: M74HC126
Description: The M74HC126 is an high speed CMOS QUAD BUFFER (3-STATE) fabricated with silicon gate C2MOS technology...
- Table of contents:
M74HC126
-
Suppliers
DataSheet
General Description
M74HC126 General Description
The M74HC126 is an high speed CMOS QUAD BUFFER (3-STATE) fabricated with silicon gate C2MOS technology.
The device requires the 3-STATE control input G to be set high to place the output into the high impedance state.
All inputs are equipped with protection circuits against static discharge and transient excess voltage.
M74HC126 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | -0.5 to +7 | V |
| VI | DC Input Voltage | -0.5 to VCC + 0.5 | V |
| VO | DC Output Voltage | -0.5 to VCC + 0.5 | V |
| IIK | DC Input Diode Current | ± 20 | mA |
| IOK | DC Output Diode Current | ± 20 | mA |
| IO | DC Output Current | ± 35 | mA |
| ICC or IGND | DC VCC or Ground Current | ± 70 | mA |
| PD | Power Dissipation | 500(*) | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature (10 sec) | 300 | °C |

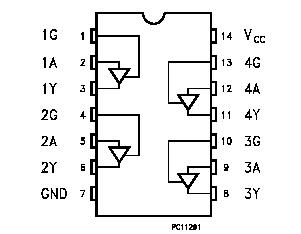

M74HC126 Connection Diagram
M74HC126
PDF/DataSheet Download
- Datasheet: M74HC126
- File Size: 128368 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
