Part Number: M74HC367
Description: The M74HC367 is an high speed CMOS HEX BUS BUFFER 3-STATE OUTPUTS fabricated with silicon gate C2...
- Table of contents:
M74HC367
-
Suppliers
DataSheet
General Description
M74HC367 General Description
The M74HC367 is an high speed CMOS HEX BUS BUFFER 3-STATE OUTPUTS fabricated with silicon gate C2MOS technology.
This device contains six buffers, four buffers are controlled by an enable input (G1) and the other two buffers are controlled by the other enable input (G2); the outputs of each buffer group are enabled when G1 and/or G2 inputs are held low, and when held high, these outputs are disabled in a high-impedance state.
All inputs are equipped with protection circuits against static discharge and transient excess voltage.
M74HC367 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage |
-0.5 to +7 |
V |
|
VI |
DC Input Voltage |
-0.5 to VCC + 0.5 |
V |
|
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
V |
|
IIK |
DC Input Diode Current |
± 20 |
mA |
|
IOK |
DC Output Diode Current |
± 20 |
mA |
|
IO |
DC Output Current |
± 35 |
mA |
|
ICC or IGND |
DC VCC or Ground Current |
±70 |
mA |
|
PD |
Power Dissipation |
500(*) |
mW |
|
Tstg |
Storage Temperature |
-65 to +150 |
|
|
TL |
Lead Temperature (10 sec) |
300 |
operation under these conditions is not implied
(*) 500mW at 65; derate to 300mW by 10mW/ from 65 to 85
M74HC367 Features
` HIGH SPEED:
tPD = 9ns (TYP.) at VCC = 6V
` LOW POWER DISSIPATION:
ICC = 4A(MAX.) at TA=25
` HIGH NOISE IMMUNITY:
VNIH = VNIL = 28 % VCC (MIN.)
` SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 6mA (MIN)
` BALANCED PROPAGATION DELAYS:
tPLH tPHL
` WIDE OPERATING VOLTAGE RANGE:
VCC (OPR) = 2V to 6V
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 367
tPD = 9ns (TYP.) at VCC = 6V
` LOW POWER DISSIPATION:
ICC = 4A(MAX.) at TA=25
` HIGH NOISE IMMUNITY:
VNIH = VNIL = 28 % VCC (MIN.)
` SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 6mA (MIN)
` BALANCED PROPAGATION DELAYS:
tPLH tPHL
` WIDE OPERATING VOLTAGE RANGE:
VCC (OPR) = 2V to 6V
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 367

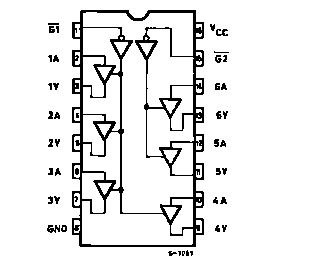

M74HC367 Connection Diagram
M74HC367
