Part Number: M74HC4066



MFG: ST

Package Cooled: SMD

D/C: 99+

Description: The M74HC4066 is an high speed CMOS QUADBILATERAL SWITCH fabricated with silicon gateC2MOS ...


Urgent Purchase

M74HC4066 General Description


The M74HC4066 is an high speed CMOS QUADBILATERAL SWITCH fabricated with silicon gateC2MOS technology.
The C input is provided to control the switch; theswitch is on when the C input is held high and offwhen C is held low.

M74HC4066 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to +13
V
VIN
DC Input Voltage
-0.5 to VCC+0.5
V
VI/O
DC Input/Output Voltage
-0.5 to VCC+0.5
V
IOK
Control Input DC Diode Current
± 20
mA
IIOK
I/O DC Diode Current
± 20
mA
IO
DC Output Source Sink Current Per Output Pin
± 25
mA
ICC or IGND
DC VCC or Ground Current
± 50
mA
PD
Power Dissipation
500(*)
mW
Tstg
Storage Temperature
-65 to +150
TL
Lead Temperature (10 sec)
300

M74HC4066 Features

HIGH SPEED:
   tPD = 7ns (TYP.) at VCC = 6V
LOW POWER DISSIPATION:
   ICC= 1A(MAX.) at TA =25
LOW "ON" RESISTANCE:
   RON = 50  TYP. AT VCC= 9V, II/O= 100 A
WIDE OPERATING  VOLTAGE RANGE
   VCC(OPR) = 2V TO 12V
SINE WAVE DISTORTION:
   0.042% at VCC = 4V f = 1KHz
HIGH NOISE IMMUNITY:
   VNIH = VNIL = 28 % VCC (MIN.)
PIN AND FUNCTION COMPATIBLE WITH
   74 SERIES 4066

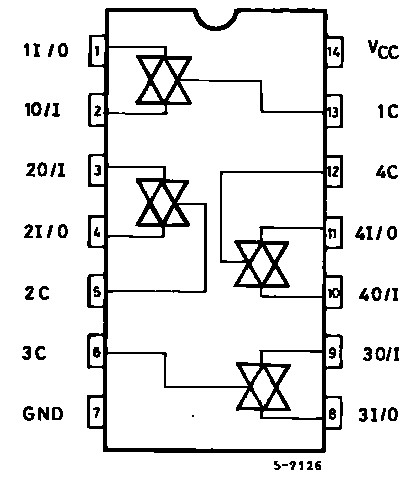

M74HC4066 Connection Diagram

M74HC4066 Connection Diagram

M74HC4066 datasheet

M74HC4066
PDF/DataSheet Download
