Part Number: M74HCT4053
Description: The M74HCT4053 is a triple two-channel analog MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C...
- Table of contents:
M74HCT4053
-
Suppliers
DataSheet
General Description
M74HCT4053 General Description
The M74HCT4053 is a triple two-channel analog MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the equivalent metal gate CMOS4000B series.
It contains 6 bidirectional and digitally controlled analog switches.
M74HCT4053 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage |
-0.5 to +7 |
V |
|
VCC - VEE |
Supply Voltage |
-0.5 to +13 |
V |
|
VI |
DC Input Voltage |
-0.5 to VCC + 0.5 |
V |
|
V I/O |
Switch I/O Voltage |
VEE -0.5 to VCC + 0.5 |
V |
|
IIK |
DC Input Diode Current |
± 20 |
mA |
|
IOK |
DC Output Diode Current |
± 20 |
mA |
|
IO |
DC Output Source Sink Current Per Output Pin |
± 35 |
mA |
|
ICC or IGND |
DC VCC or Ground Current |
± 70 |
mA |
|
PD |
Power Dissipation |
500 (*) |
mW |
|
Tstg |
Storage Temperature |
-65 to +150 |
°C |
|
TL |
Lead Temperature (10 sec) |
300 |
°C |
M74HCT4053 Features
·LOW POWER DISSIPATION: ICC = 4mA (MAX.) at TA=25°C
·LOGIC LEVEL TRANSLATIOn TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL
·LOW "ON" RESISTANCE: 70W TYP. (VCC - VEE = 4.5V) 50W TYP. (VCC - VEE = 9V)
·WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
·FAST SWITCHING: tpd = 13ns (TYP.) at TA = 25 °C
·LOW CROSSTALK BETWEEn SWITCHES
·HIGH ON/OFF OUTPUT VOLTAGE RATIO
·WIDE OPERATING SUPPLY VOLTAGE RANGE (VCC - VEE) = 2V TO 12V
·LOW SINE WAVE DISTORTION: 0.02% at VCC - VEE = 9V
·COMPATIBLE WITH TTL OUTPUTS: VIH = 2V(MIN.) VIL = 0.8V (MAX.)
·PInAND FUNCTIOn COMPATIBLE WITH 74 SERIES 4053
·LOGIC LEVEL TRANSLATIOn TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL
·LOW "ON" RESISTANCE: 70W TYP. (VCC - VEE = 4.5V) 50W TYP. (VCC - VEE = 9V)
·WIDE ANALOG INPUT VOLTAGE RANGE: ±6V
·FAST SWITCHING: tpd = 13ns (TYP.) at TA = 25 °C
·LOW CROSSTALK BETWEEn SWITCHES
·HIGH ON/OFF OUTPUT VOLTAGE RATIO
·WIDE OPERATING SUPPLY VOLTAGE RANGE (VCC - VEE) = 2V TO 12V
·LOW SINE WAVE DISTORTION: 0.02% at VCC - VEE = 9V
·COMPATIBLE WITH TTL OUTPUTS: VIH = 2V(MIN.) VIL = 0.8V (MAX.)
·PInAND FUNCTIOn COMPATIBLE WITH 74 SERIES 4053

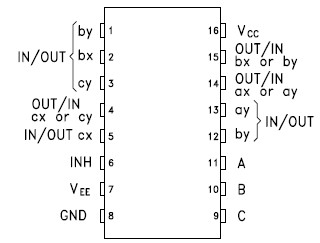

M74HCT4053 Connection Diagram
M74HCT4053
