General Description
M87C51FC General Description
PROGRAM MEMORY: Up to 32 Kbytes of the program memory can reside in the on-chip EPROM. In addition the device can address up to 64K of program memory external to the chip.
DATA MEMORY: This microcontroller has a 256 x 8 on-chip RAM. In addition it can address up to 64 Kbytes of external data memory.
The Intel M87C51FC is a single-chip control-oriented microcontroller which is fabricated on Intel's reliable CHMOS III-E technology. Being a member of the MCS-51 family, the M87C51FC uses the same powerful instruction set, has the same architecture, and is pin-for-pin compatible with the existing MCS-51 family of products. The M87C51FC is an enhanced version of the 87C51. Its added features make it an even more powerful microcontroller for applications that require Pulse Width Modulation, High Speed I/O, and up/down counting capabilities such as motor control. It also has a more versatile serial channel that facilitates multiprocessor communications.
M87C51FC Maximum Ratings
Case Temperature Under Bias.. -55 to +125
Storage Temperature.......-65 to +150
Voltage on EA/VPP Pin to VSS....0V to +13.0V
Voltage on Any Other Pin to VSS .-0.5V to +6.5V
IOL Per I/O Pin ...............15 mA
Power Dissipation............ ..1.5W
(based on PACKAGE heat transfer limitations, not device power consumption)
NOTICE: This data sheet contains information on products in the sampling and initial production phases ofdevelopment. The specifications are subject to change without notice. Verify with your local Intel Sales office that you have the latest data sheet before finalizing a design.
*WARNING: Stressing the device beyond the "AbsoluteMaximum Ratings" may cause permanent damage.
These are stress ratings only. Operation beyond the "Operating Conditions"is not recommended and extended exposure beyond the "Operating Conditions"may affect device reliability.
M87C51FC Features
`High Performance CHMOS EPROM
`Three 16-Bit Timer/Counters
`Programmable Clock Out
`Programmable Counter Array with:
High Speed Output,
Compare/Capture,
Pulse Width Modulator,
Watchdog Timer Capabilities
`Up/Down Timer/Counter
`Three Level Program Lock System
`32K On-Chip EPROM
`256 Bytes of On-Chip Data RAM
`Improved Quick Pulse Programming Algorithm
`Boolean Processor
`Available in 40-pin Cerdip and 44-pin LCC Packages
`32 Programmable I/O Lines
`7 Interrupt Sources
`Programmable Serial Channel with:
Framing Error Detection
Automatic Address Recognition
`TTL and CMOS Compatible Logic Levels
`64K External Program Memory Space
`64K External Data Memory Space
`MCSÉ-51 Fully Compatible Instruction Set
`Power Saving Idle and Power Down Modes
`ONCE (On-Circuit Emulation) Mode
`Available in Two Product Grades:
MIL-STD-883, b55to a125 (TC)
Military Temperature Only (MTO)
-55 to a125 (TC)
`Three 16-Bit Timer/Counters
`Programmable Clock Out
`Programmable Counter Array with:
High Speed Output,
Compare/Capture,
Pulse Width Modulator,
Watchdog Timer Capabilities
`Up/Down Timer/Counter
`Three Level Program Lock System
`32K On-Chip EPROM
`256 Bytes of On-Chip Data RAM
`Improved Quick Pulse Programming Algorithm
`Boolean Processor
`Available in 40-pin Cerdip and 44-pin LCC Packages
`32 Programmable I/O Lines
`7 Interrupt Sources
`Programmable Serial Channel with:
Framing Error Detection
Automatic Address Recognition
`TTL and CMOS Compatible Logic Levels
`64K External Program Memory Space
`64K External Data Memory Space
`MCSÉ-51 Fully Compatible Instruction Set
`Power Saving Idle and Power Down Modes
`ONCE (On-Circuit Emulation) Mode
`Available in Two Product Grades:
MIL-STD-883, b55to a125 (TC)
Military Temperature Only (MTO)
-55 to a125 (TC)

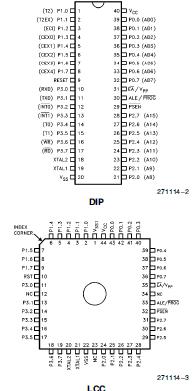

M87C51FC Connection Diagram
M87C51FC-1
PDF/DataSheet Download
- Datasheet: M87C51FC-1
- File Size: 264011 KB
- Manufacturer: INTEL [Intel Corporation]
- Click here to Download
