Features:

· Ideal for Pager Applications
· +30.8 dBm Output Power
· 30.8 dB Power Gain
· Single Positive Supply
· Class AB Bias
· 50 Ohm Input Impedance
· Single Capacitor Output Match




Pinout

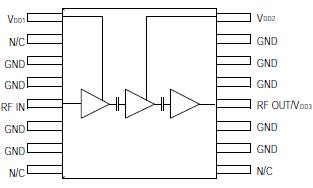

Connection Diagram


Specifications

arameter Absolute Maximum
Max Input Power +6 dBm
Operating Voltages +5.0 volts
Operating Temperature, Ts -40 to +70
Channel Temperature +150
Storage Temperature -40 to +150

1. Exceeding any one or combination of these limits may cause permanent damage.


Description

The MA02107AF is a three stage power amplifier, designed for paging applications to have an output power of +30.8 dBm with an input power of 0 dBm. This power amplifier operates at +3.4 volts with 55% typical power added  fficiency. The MA02107AF is mounted in a standard outline 16-pin TSSOP plastic package.

The MA02107AF is fabricated using M/A-COM's self-aligned MSAG®-Lite MESFET process for a low single supply voltage, high power efficiency, and excellent reliability.
