MA2SD29
-
Suppliers
DataSheet
General Description
MA2SD29 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Reverse voltage |
VR |
30 |
V |
| Repetitive peak reverse voltage |
VRRM |
30 |
V |
| Forward current (Average) |
IF(AV) |
100 |
mA |
| Peak forward current |
IFM |
200 |
mA |
| Non-repetitive peak forward surge current * |
IFSM |
1 |
A |
| Junction temperature |
Tj |
125 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
MA2SD29 Features
• Low forward voltage: VF < 0.42 V (at IF = 100 mA)
• Optimum for high frequency rectification because of its short reverse recovery time trr .
• Optimum for high frequency rectification because of its short reverse recovery time trr .
MA2SD29 Typical Application
For super high speed switching
MA2SD29
PDF/DataSheet Download
- Datasheet: MA2SD29
- File Size: 87522 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
- ·MA2000
- PANASONIC [Panasonic Semiconductor]
- Silicon planar type
- 96410 KB
- ·MA2000 Series
- Zener Diodes
- 105823 KB
- ·MA20101BAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MA20101BBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MA20101CAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MA20101CBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MA20101DAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MA20101DBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
MA2SD29 Relative Products
MA2SD250GL
DIODE SCHOTTKY 15V 200MA SSMINI
MA2SD25

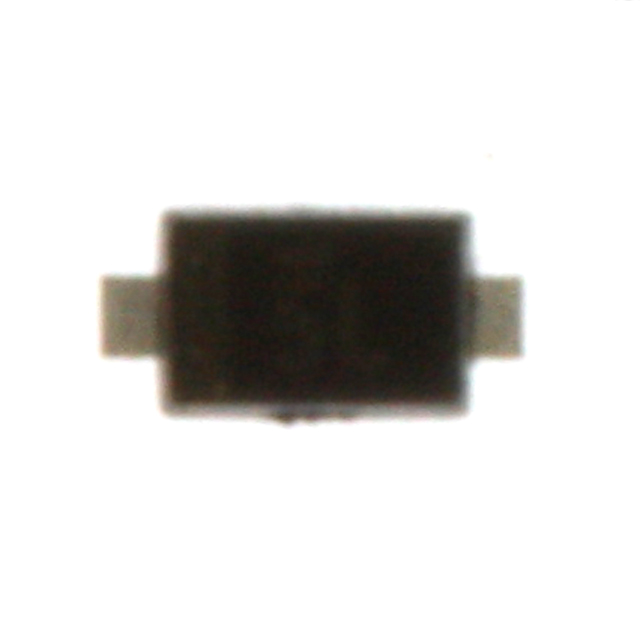

MA2SD240GL
