Purchase MA4X714, In-stock MA4X714 From SeekIC.

MFG:Panasonic  Package Cooled:SOT143  D/C:04+

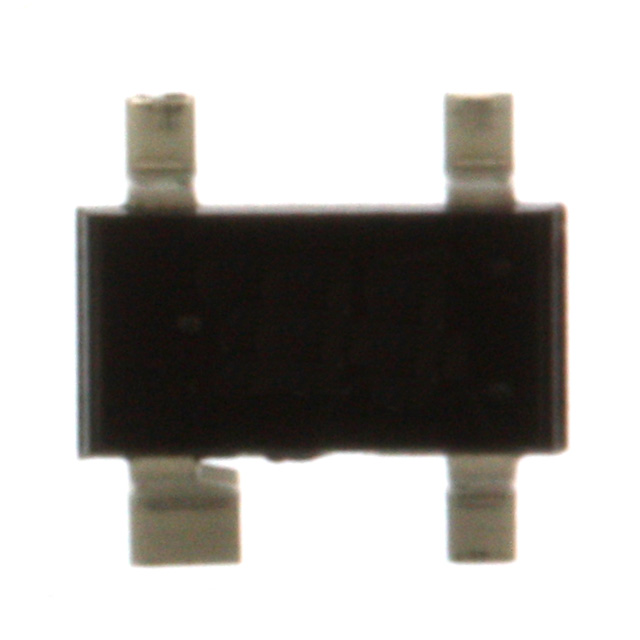

MA4X714 Product Image

MA4 Series Datasheet download

Five Points

Part Number: MA4X714



MFG: Panasonic

Package Cooled: SOT143

D/C: 04+



Urgent Purchase

MA4X714 Maximum Ratings

Parameter
Symbol
Rating
Unit
Reverse voltage (DC)
VR
30
V
Peak forward
current
Forward current
(DC)		 Single
Double*
Single
Double*
IFM

IF
150
110
30
20
mA

mA
Junction temperature
Storage temperature
Tj
Tstg
125
−55 to +125
°C
°C
Note) * : Value per chip

MA4X714 Features

• Two MA3X704As are contained in one package (Two diodes in a different direction)
• Optimum for low-voltage rectification because of its low forward rise voltage (VF)
• Optimum for high-frequency rectification because of its short reverse recovery time (trr)

MA4X714 datasheet

MA4X714
PDF/DataSheet Download

  • Datasheet: MA4X714
  • File Size: 48041 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
