Product Details

Description

Features:

• 12 dB Voltage Variable Attenuation
• Low Intermodulation Products
• Low DC Power Consumption: 50 W
• Single Voltage Control: 0 to -4 Volts
• Nanosecond Switching Speed
• Temperature Range: -40°C to +85°C
• Lead-Free SOIC-8 Plastic Package
• 100% Matte Tin Plating over Copper
• Halogen-Free "Green" Mold Compound
• 260°C Reflow Compatible
• RoHS* Compliant Version of AT-250

Pinout

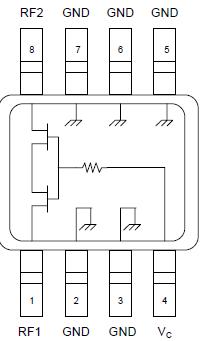

Connection Diagram

Specifications

Input Power ........................................+21 dBm
Control Voltage ................................+5V, -8.5V
Operating Temperature......... -40°C to +85°C
Storing Temperature............ -65°C to +150°C
2. Exceeding any one or combination of these limits may cause permanent damage to this device.

Description

M/A-COM's MAAV-007941 is a GaAs MMIC voltage variable absorptive attenuator in a low cost lead-free SOIC 8-lead surface mount plastic package. The MAAV-007941 is ideally suited for use where attenuation fine tuning, fast switching and very low power consumption are required.Typical applications include radio, cellular, GPS equipment and other automatic gain/level control circuits.

The MAAV-007941 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.
