General Description
MACH110-15 General Description
The MACH110 is a member of AMD's high-performance EE CMOS MACH 1 family. This device has approximately three times the logic macrocell capability of the popular PAL22V10 without loss of speed.
The MACH110 consists of two PAL blocks interconnected by a programmable switch matrix. The two PAL blocks are essentially "PAL22V16" structures complete with product-term arrays and programmable macrocells. The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fully-connected PAL blocks. This allows designs to be placed and routed efficiently.
The MACH110 macrocell provides either registered or combinatorial outputs with programmable polarity. If a registered configuration is chosen, the register can be configured as D-type or T-type to help reduce the number of product terms. The register type decision can be made by the designer or by the software. All macrocells can be connected to an I/O cell. If a buried macrocell is desired, the internal feedback path from the macrocell can be used, which frees up the I/O pin for use as an input.
MACH110-15 Maximum Ratings
Storage Temperature . . . . . . . .65°C to +150°C
Ambient Temperature
With Power Applied . . . . . . . . . 55°C to +125°C
Supply Voltage with
Respect to Ground . . . . . . . . . . . . 0.5 V to +7.0 V
DC Input Voltage . . . . . . . . . 0.5 V to VCC + 0.5 V
DC Output or I/O
Pin Voltage . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Static Discharge Voltage . . . . . . . . . . . . . . . . 2001 V
Latchup Current
(TA = 0°C to 70°C) . . . . . . . . . . . . . . . . . . . 200 mA
Stresses above those l isted under Absolute Maximum
Ratings may cause permanent device failure. Functionality
at orabove these limits is not implied. Exposure to Absolute
Maximum Ratings for extended periods may affect device
reliability. Programming conditions may differ.
Ambient Temperature
With Power Applied . . . . . . . . . 55°C to +125°C
Supply Voltage with
Respect to Ground . . . . . . . . . . . . 0.5 V to +7.0 V
DC Input Voltage . . . . . . . . . 0.5 V to VCC + 0.5 V
DC Output or I/O
Pin Voltage . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Static Discharge Voltage . . . . . . . . . . . . . . . . 2001 V
Latchup Current
(TA = 0°C to 70°C) . . . . . . . . . . . . . . . . . . . 200 mA
Stresses above those l isted under Absolute Maximum
Ratings may cause permanent device failure. Functionality
at orabove these limits is not implied. Exposure to Absolute
Maximum Ratings for extended periods may affect device
reliability. Programming conditions may differ.
MACH110-15 Features
`44 Pins
`32 Macrocells
`12 ns tPD Commercial 14 ns tPD Industrial
`77 MHz fCNT
`38 Inputs
`32 Outputs
`32 Flip-flops; 2 clock choices
` 2 "PAL22V16" Blocks
`Pin-compatible with MACH111, MACH210, MACH211, MACH215
`32 Macrocells
`12 ns tPD Commercial 14 ns tPD Industrial
`77 MHz fCNT
`38 Inputs
`32 Outputs
`32 Flip-flops; 2 clock choices
` 2 "PAL22V16" Blocks
`Pin-compatible with MACH111, MACH210, MACH211, MACH215

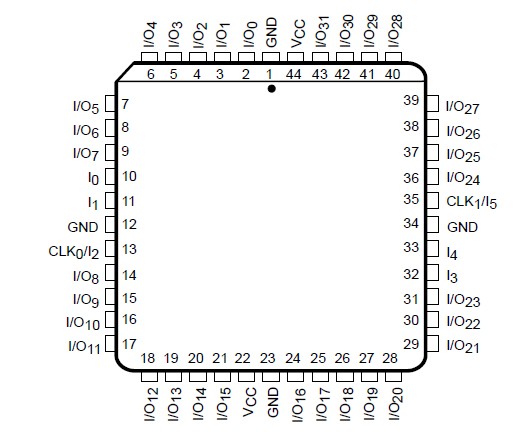

MACH110-15 Connection Diagram
MACH110-15
PDF/DataSheet Download
- Datasheet: MACH110-15
- File Size: 202916 KB
- Manufacturer: AMD [Advanced Micro Devices]
- Click here to Download
