Purchase MACP-007727-CI07B0, In-stock MACP-007727-CI07B0 From SeekIC.
Part Number: MACP-007727-CI07B0
Description: M/A-COM's MACP-007727-CI07B0 is an 18dB broadband coupler in a low cost, surface mount package. It off...
- Table of contents:
MACP-007727-CI07B0
-
Suppliers
DataSheet
General Description
MACP-007727-CI07B0 General Description
M/A-COM's MACP-007727-CI07B0 is an 18dB broadband coupler in a low cost, surface mount package. It offers low loss, good isolation, good input/output matching and exceptional matching in return loss. Ideally suited for high volume CATV/ Broadband applications.
MACP-007727-CI07B0 Maximum Ratings
| Parameter | Absolute Maximum |
| Max Input Power | 250mW |
| DC current | 30mA |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
2. M/A-COM does not recommend sustained operation near these survivability limits.
MACP-007727-CI07B0 Features
• Surface mount
• Typical coupling +18dB
• 260°C reflow compatible
• RoHS* compliant
• Available on tape and reel, reel quantity 1000
• Typical coupling +18dB
• 260°C reflow compatible
• RoHS* compliant
• Available on tape and reel, reel quantity 1000

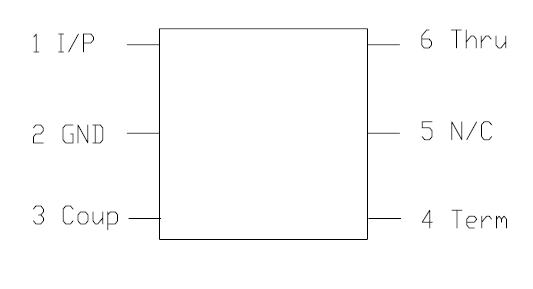

MACP-007727-CI07B0 Connection Diagram
MACP-007727-CI07B0
PDF/DataSheet Download
- Datasheet: MACP-007727-CI07B0
- File Size: 77469 KB
- Manufacturer: MACOM [Tyco Electronics]
- Click here to Download
