MAD 4868A
-
Suppliers
DataSheet
General Description
MAD 4868A Maximum Ratings
| Symbol | Parameter | Pin Name | Limit Values | Unit | |
| Min. | Max. | ||||
| TA1) | Ambient Temperature | −10 | 70 | °C | |
| TC | Case Temperature | −10 | 95 | °C | |
| TS | Storage Temperature | −40 | 125 | °C | |
| PMAX | Maximum Power Dissipation | 860 | mW | ||
| VSUP | Supply Voltage | DVSUP1, DVSUP2 |
−0.3 | 6.0 | V |
| VIdig | Input Voltage, all Digital Inputs | −0.3 | VSUP2+0.3 | V | |
| IIdig | Input Current, all Digital Pins | −20 | +20 | mA | |
| 1) Measured on standard board according to JESD 51 Standard with maximum power consumption allowed for this package. | |||||
MAD 4868A Features
` 32 k audio samples RAM: Total delay time of 680 ms at 48 kHz or 1020 ms at 32 kHz sampling rate
` 32/18-bit word width: 32-bit High-Resolution mode or 18-bit Standard mode
` Sampling rates from 32 kHz to 48 kHz for serial 8-channel mode are supported
` Sampling rates from 4 kHz to 192 kHz for parallel 2-channel mode are supported
` Memory allocation: MAD 4868A's memory can be allocated for 1.8 audio channels. Delay time can be programmed for each channel individually.
` 32/18-bit word width: 32-bit High-Resolution mode or 18-bit Standard mode
` Sampling rates from 32 kHz to 48 kHz for serial 8-channel mode are supported
` Sampling rates from 4 kHz to 192 kHz for parallel 2-channel mode are supported
` Memory allocation: MAD 4868A's memory can be allocated for 1.8 audio channels. Delay time can be programmed for each channel individually.

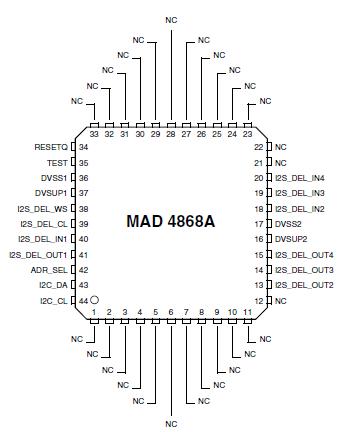

MAD 4868A Connection Diagram
MAD1103
