Part Number: MAX1108
Description: The MAX1108/MAX1109 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) feature an int...
- Table of contents:
MAX1108
-
Suppliers
DataSheet
General Description
MAX1108 General Description
The MAX1108/MAX1109 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H) voltage reference, clock, and serial interface.
The MAX1108 is specified from +2.7V to +3.6V and consumes only 105A. The MAX1109 is specified from +4.5V to +5.5V and consumes only 130A. The analog inputs are software configurable, allowing unipolar/bipolar and single-ended/differential operation; battery monitoring capability is also included.
The full-scale analog input range is determined by the internal reference of +2.048V (MAX1108) or +4.096V (MAX1109), or by an externally applied reference ranging from 1V to VDD. The MAX1108/MAX1109 also feature a software power-down mode that reduces power consumption
to 0.5A when the device is not in use. The 4-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic.
Conversions up to 50ksps are performed using either the internal clock or an external serial-interface clock.
The MAX1108 and MAX1109 are available in a 10-pin MAX package with a footprint that is just 20% of an 8-pin plastic DIP.
MAX1108 Maximum Ratings
VDD to GND.........................................................-0.3V to +6V
CH0, CH1, COM, REF, DOUT to GND .....-0.3V to (VDD + 0.3V)
DIN, SCLK, CS to GND .......................................-0.3V to +6V
Continuous Power Dissipation (TA = +70)
10-pin MAX (derate 5.6mW/ above +70) ............444mW
Operating Temperature Ranges
MAX110_CUB ......................................................0 to +70
MAX110_EUB ...................................................-40 to +85
Storage Temperature Range .........................-65 to +150
Lead Temperature (soldering, 10sec) .........................+300
CH0, CH1, COM, REF, DOUT to GND .....-0.3V to (VDD + 0.3V)
DIN, SCLK, CS to GND .......................................-0.3V to +6V
Continuous Power Dissipation (TA = +70)
10-pin MAX (derate 5.6mW/ above +70) ............444mW
Operating Temperature Ranges
MAX110_CUB ......................................................0 to +70
MAX110_EUB ...................................................-40 to +85
Storage Temperature Range .........................-65 to +150
Lead Temperature (soldering, 10sec) .........................+300
MAX1108 Features
` Single Supply: +2.7V to +3.6V (MAX1108)
+4.5V to +5.5V (MAX1109)
` Low Power: 105A at +3V and 50ksps
0.5A in Power-Down Mode
` Software-Configurable Unipolar or Bipolar Inputs
` Input Voltage Range: 0 to VDD
` Internal Track/Hold
` Internal Reference: +2.048V (MAX1108)
+4.096V (MAX1109)
` Reference Input Range: 1V to VDD
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` VDD Monitoring Mode
` Small 10-Pin MAX Package
+4.5V to +5.5V (MAX1109)
` Low Power: 105A at +3V and 50ksps
0.5A in Power-Down Mode
` Software-Configurable Unipolar or Bipolar Inputs
` Input Voltage Range: 0 to VDD
` Internal Track/Hold
` Internal Reference: +2.048V (MAX1108)
+4.096V (MAX1109)
` Reference Input Range: 1V to VDD
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` VDD Monitoring Mode
` Small 10-Pin MAX Package
MAX1108 Typical Application
Portable Data Logging
Hand-Held Measurement Devices
Medical Instruments
System Diagnostics
Solar-Powered Remote Systems
420mA-Powered Remote Systems
Receive-Signal Strength Indicators
Hand-Held Measurement Devices
Medical Instruments
System Diagnostics
Solar-Powered Remote Systems
420mA-Powered Remote Systems
Receive-Signal Strength Indicators

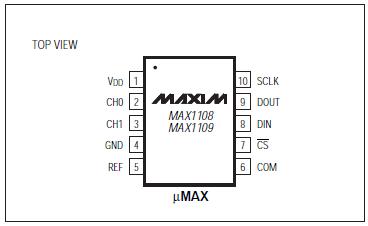

MAX1108 Connection Diagram
MAX1108
