Part Number: MAX1115
Description: The MAX1115/MAX1116 low-power, 8-bit, analog-todigital converters (ADCs) feature an internal track/hol...
- Table of contents:
MAX1115
-
Suppliers
DataSheet
General Description
MAX1115 General Description
The MAX1115/MAX1116 low-power, 8-bit, analog-todigital converters (ADCs) feature an internal track/hold (T/H), voltage reference, VDD monitor, clock, and serial interface. The MAX1115 is specified from +2.7V to +5.5V, and the MAX1116 is specified from +4.5V to +5.5V. Both parts consume only 175A at 100ksps.
The full-scale analog input range is determined by the internal reference of +2.048V (MAX1115) or +4.096V (MAX1116). The MAX1115/MAX1116 also feature
AutoShutdown™ power-down mode which reduces power consumption to <1A when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 100ksps are performed using an internal clock.
The MAX1115/MAX1116 are available in an 8-pin SOT23 package with a footprint that is just 30% of an 8-pin SO.
MAX1115 Maximum Ratings
VDD to GND...........................................................-0.3V to +6.0V
CH0 to GND ...............................................-0.3V to (VDD + 0.3V)
Digital Output to GND ................................-0.3V to (VDD + 0.3V)
Digital Input to GND .............................................-0.3V to +6.0V
Maximum Current into Any Pin ........................................±50mA
Continuous Power Dissipation (TA = +70)
8-Pin SOT23 (derate 8.9mW/above +70)..................714mW
Operating Temperature Range
MAX111_EKA ......................................................-40 to + 85
Junction Temperature......................................................+150
Storage Temperature Range .............................-60 to +150
Lead Temperature (soldering, 10s) .................................+300
CH0 to GND ...............................................-0.3V to (VDD + 0.3V)
Digital Output to GND ................................-0.3V to (VDD + 0.3V)
Digital Input to GND .............................................-0.3V to +6.0V
Maximum Current into Any Pin ........................................±50mA
Continuous Power Dissipation (TA = +70)
8-Pin SOT23 (derate 8.9mW/above +70)..................714mW
Operating Temperature Range
MAX111_EKA ......................................................-40 to + 85
Junction Temperature......................................................+150
Storage Temperature Range .............................-60 to +150
Lead Temperature (soldering, 10s) .................................+300
MAX1115 Features
` Single Supply
+2.7V to +3.6V (MAX1115)
+4.5V to +5.5V (MAX1116)
` Input Voltage Range: 0 to VREF
` Internal Track/Hold; 100kHz Sampling Rate
` Internal Reference
+2.048V (MAX1115)
+4.096V (MAX1116)
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 8-Pin SOT23 Package
` Automatic Power-Down
` Low Power
175A at 100ksps
18A at +3V and 10ksps
1A in Power-Down Mode
+2.7V to +3.6V (MAX1115)
+4.5V to +5.5V (MAX1116)
` Input Voltage Range: 0 to VREF
` Internal Track/Hold; 100kHz Sampling Rate
` Internal Reference
+2.048V (MAX1115)
+4.096V (MAX1116)
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 8-Pin SOT23 Package
` Automatic Power-Down
` Low Power
175A at 100ksps
18A at +3V and 10ksps
1A in Power-Down Mode
MAX1115 Typical Application
Low-Power, Hand-Held Portable Devices
System Diagnostics
Battery-Powered Test Equipment
Receive-Signal-Strength Indicators
4mA to 20mA Powered Remote Data-Acquisition
Systems
System Diagnostics
Battery-Powered Test Equipment
Receive-Signal-Strength Indicators
4mA to 20mA Powered Remote Data-Acquisition
Systems

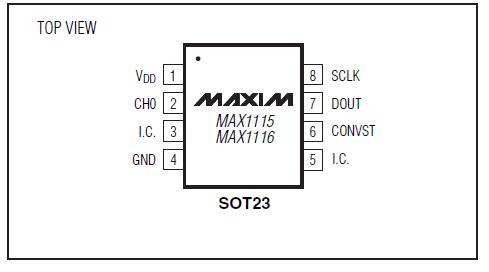

MAX1115 Connection Diagram
MAX1115
PDF/DataSheet Download
- Datasheet: MAX1115
- File Size: 388477 KB
- Manufacturer: MAXIM [Maxim Integrated Products]
- Click here to Download
