Part Number: MAX1117
Description: The MAX1117/MAX1118/MAX1119 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) featur...
- Table of contents:
MAX1117
-
Suppliers
DataSheet
General Description
MAX1117 General Description
The MAX1117/MAX1118/MAX1119 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H) voltage reference
(MAX1117/MAX1119), clock, and serial interface. The MAX1118 is specified from +2.7V to +5.5V and consumes only 135A at 100ksps. The MAX1117 is specified from +2.7V to +3.6V, and the MAX1119 is specified from +4.5V to +5.5V, each consumes only 175A at
100ksps.
The full-scale analog input range is determined by the internal reference of +2.048V (MAX1117) or +4.096V (MAX1119), or by an externally applied reference ranging from +1V to VDD (MAX1118). All devices feature an automatic shutdown mode that reduces supply current to <1A when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 100ksps are performed using an internal clock.
The MAX1117/MAX1118/MAX1119 are available in an 8-pin SOT23 package with a footprint that is only 11% of an 8-pin plastic DIP.
MAX1117 Maximum Ratings
VDD to GND......................................................-0.3V to +6.0V
CH0,CH1, REF to GND............................-0.3V to (VDD + 0.3V)
Digital Output to GND ...........................-0.3V to (VDD + 0.3V)
Digital Input to GND ........................................-0.3V to +6.0V
Maximum Current into Any Pin ...................................±50mA
Continuous Power Dissipation (TA = +70)
8-Pin SOT23 (derate 8.9mW/ above +70)............714mW
Operating Temperature Range
MAX1117EKA ..................................................-40 to + 85
MAX1118EKA ..................................................-40 to + 85
MAX1119EKA ..................................................-40 to + 85
Storage Temperature Range .........................-60 to +150
Lead Temperature (soldering, 10s) .............................+300
CH0,CH1, REF to GND............................-0.3V to (VDD + 0.3V)
Digital Output to GND ...........................-0.3V to (VDD + 0.3V)
Digital Input to GND ........................................-0.3V to +6.0V
Maximum Current into Any Pin ...................................±50mA
Continuous Power Dissipation (TA = +70)
8-Pin SOT23 (derate 8.9mW/ above +70)............714mW
Operating Temperature Range
MAX1117EKA ..................................................-40 to + 85
MAX1118EKA ..................................................-40 to + 85
MAX1119EKA ..................................................-40 to + 85
Storage Temperature Range .........................-60 to +150
Lead Temperature (soldering, 10s) .............................+300
MAX1117 Features
` Single Supply
+2.7V to +3.6V (MAX1117)
+2.7V to +5.5V (MAX1118)
+4.5V to +5.5V (MAX1119)
` Internal Track/Hold: 100kHz Sampling Rate
` Internal Reference
+2.048V (MAX1117)
+4.096V (MAX1119)
` Reference Input Range: 0 to VDD (MAX1118)
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 8-Pin SOT23 Package
` Automatic Power-Down
` Analog Input Range: 0 to VREF
` Low Power
175A at 100ksps (typ) (MAX1117/MAX1119)
135A at 100ksps (typ) (MAX1118)
18A at 10ksps (typ)
1A (typ) in Power-Down Mode
+2.7V to +3.6V (MAX1117)
+2.7V to +5.5V (MAX1118)
+4.5V to +5.5V (MAX1119)
` Internal Track/Hold: 100kHz Sampling Rate
` Internal Reference
+2.048V (MAX1117)
+4.096V (MAX1119)
` Reference Input Range: 0 to VDD (MAX1118)
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 8-Pin SOT23 Package
` Automatic Power-Down
` Analog Input Range: 0 to VREF
` Low Power
175A at 100ksps (typ) (MAX1117/MAX1119)
135A at 100ksps (typ) (MAX1118)
18A at 10ksps (typ)
1A (typ) in Power-Down Mode
MAX1117 Typical Application
Low-Power, Handheld Portable Devices
System Diagnostics
Battery-Powered Test Equipment
Solar-Powered Remote Systems
Receive Signal Strength Indicators
4mA to 20mA Powered Remote Data Acquisition
Systems
System Diagnostics
Battery-Powered Test Equipment
Solar-Powered Remote Systems
Receive Signal Strength Indicators
4mA to 20mA Powered Remote Data Acquisition
Systems

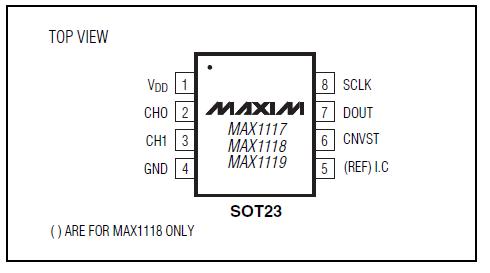

MAX1117 Connection Diagram
MAX1117
