Part Number: MAX1200
Description: The MAX1200 16-bit, monolithic, analog-to-digital con-verter (ADC) is capable of conversion rates up t...
- Table of contents:
MAX1200
-
Suppliers
DataSheet
General Description
MAX1200 General Description
The MAX1200 16-bit, monolithic, analog-to-digital con-verter (ADC) is capable of conversion rates up to 1Msps. This CMOS integrated circuit uses a fully differ-ential, pipelined architecture with digital error correction and a short self-calibration to ensure 16-bit linearity at full sample rates. An on-chip track/hold (T/H) maintains superb dynamic performance up to the Nyquist frequen-cy. The MAX1200 operates from a single +5V supply.
The fully differential inputs allow an input swing of ±VREF. The reference is also differential with the posi-tive reference (RFPF) typically connected to +4.096V and the negative reference (RFNF) connected to ana-log ground. Additional sensing pins (RFPS, RFNS) are provided to compensate for any resistive divider action that may occur. A single-ended input is also possible using two operational amplifiers.
Power dissipation is typically only 273mW at +5V, at a sampling rate of 1Msps. The device employs a CMOS-compatible, 16-bit parallel, two's complement output data format. For a higher sampling speed (up to 2.2Msps) but lower resolution (14-bit), select the MAX1201, a pin-compatible version of the MAX1200.
The MAX1200 is available in an MQFP package and operates over the commercial (0°C to +70°C) and extended-industrial (-40°C to +85°C) temperature ranges.
MAX1200 Maximum Ratings
AVDDto AGND, DGND..........................................................+7V
DVDDto DGND, AGND..........................................................+7V
DRVDDto DGND, AGND.......................................................+7V
INP, INN, RFPF, RFPS,
RFNF, RFNS, CLK, CM..........(AGND - 0.3V) to (AVDD+ 0.3V)
Digital Inputs to DGND............................-0.3V to (DVDD+ 0.3V)
Digital Output (DAV) to DGND..............-0.3V to (DRVDD+ 0.3V)
Other Digital Outputs to DGND.............-0.3V to (DRVDD+ 0.3V)
Continuous Power Dissipation (TA= +70°C)
44-Pin MQFP (derate 11.11mW/°C above +70°C).......889mW
Operating Temperature Ranges (TA)
MAX1200_CMH..................................................0°C to +70°C
MAX1200_EMH................................................-40°C to +85°C
Storage Temperature Range.............................-65°C to +150°C
Lead Temperature (soldering, 10sec).............................+300°C
DVDDto DGND, AGND..........................................................+7V
DRVDDto DGND, AGND.......................................................+7V
INP, INN, RFPF, RFPS,
RFNF, RFNS, CLK, CM..........(AGND - 0.3V) to (AVDD+ 0.3V)
Digital Inputs to DGND............................-0.3V to (DVDD+ 0.3V)
Digital Output (DAV) to DGND..............-0.3V to (DRVDD+ 0.3V)
Other Digital Outputs to DGND.............-0.3V to (DRVDD+ 0.3V)
Continuous Power Dissipation (TA= +70°C)
44-Pin MQFP (derate 11.11mW/°C above +70°C).......889mW
Operating Temperature Ranges (TA)
MAX1200_CMH..................................................0°C to +70°C
MAX1200_EMH................................................-40°C to +85°C
Storage Temperature Range.............................-65°C to +150°C
Lead Temperature (soldering, 10sec).............................+300°C
MAX1200 Features
Monolithic 16-Bit, 1Msps A/D Converter
Single +5V Supply
±VREFDifferential Input Voltage Range
87dB SNR for fIN= 100kHz
91dB SFDR for fIN= 100kHz
273mW Low-Power Dissipation
±0.5LSB Differential Nonlinearity Error
Three-State, Two's Complement Output Data
On-Demand Self-Calibration
Pin-Compatible 14-Bit Versions Available (1Msps MAX1205, 2.2Msps MAX1201)
Single +5V Supply
±VREFDifferential Input Voltage Range
87dB SNR for fIN= 100kHz
91dB SFDR for fIN= 100kHz
273mW Low-Power Dissipation
±0.5LSB Differential Nonlinearity Error
Three-State, Two's Complement Output Data
On-Demand Self-Calibration
Pin-Compatible 14-Bit Versions Available (1Msps MAX1205, 2.2Msps MAX1201)
MAX1200 Typical Application
High-Resolution Imaging
Communications
Scanners
Data Acquisition
Instrumentation
Communications
Scanners
Data Acquisition
Instrumentation

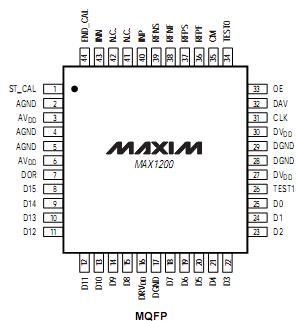

MAX1200 Connection Diagram
MAX1200
