General Description
MAX132 General Description
The MAX132 is a CMOS, 18-bit plus sign, serial-output, analog-to-digital converter (ADC). Multi-slope integration provides high-resolution conversions in less time than standard integrating ADCs, allowing operation up to 100 conversions per second. Low conversion noise provides guaranteed operation with ±512mV full-scale input range (2V/LSB). A simple 4-wire serial interface connects easily to all common microprocessors, and twos-complement output coding simplifies bipolar measurements. Typical supply current is only 60A and isreduced to 1A in sleep mode. Four serially programmed digital outputs can be used to control an external multiplexer or programmable-gain amplifier. The MAX132 comes in 24-pin narrow DIP and wide SO packages, and is available in commercial and extended temperature grades.
High resolution, compact size, and low power make this device ideal for data loggers, weigh scales, data-acquisition systems, and panel meters.
MAX132 Maximum Ratings
Supply Voltage
V+ to DGND ................................................-0.3V < V+ < +6.0V
V- to DGND ..................................................+0.3V < V- < -9.0V
V+ to V- ............................................................................+15V
Analog Input Voltage (any input).........................V+ to VDigital
Input Voltage ...............................(DGND - 0.3V) to (V+ + 0.3V)
Continuous Power Dissipation
Narrow Plastic DIP (derate 8.70mW/ above +70)....478mW
Wide SO (derate 11.76mW/ above +70)..................647mW
Narrow CERDIP (derate 12.50mW/ above +70) ......688mW
Operating Temperature Ranges
MAX132C_ _ ...........................................................0 to +70
MAX132E_ _ ........................................................-40 to +85
MAX132MRG.......................................................-55 to +125
Storage Temperature Range .............................-65 to +160
Lead Temperature (soldering, 10sec) .............................+300
V+ to DGND ................................................-0.3V < V+ < +6.0V
V- to DGND ..................................................+0.3V < V- < -9.0V
V+ to V- ............................................................................+15V
Analog Input Voltage (any input).........................V+ to VDigital
Input Voltage ...............................(DGND - 0.3V) to (V+ + 0.3V)
Continuous Power Dissipation
Narrow Plastic DIP (derate 8.70mW/ above +70)....478mW
Wide SO (derate 11.76mW/ above +70)..................647mW
Narrow CERDIP (derate 12.50mW/ above +70) ......688mW
Operating Temperature Ranges
MAX132C_ _ ...........................................................0 to +70
MAX132E_ _ ........................................................-40 to +85
MAX132MRG.......................................................-55 to +125
Storage Temperature Range .............................-65 to +160
Lead Temperature (soldering, 10sec) .............................+300
MAX132 Features
`Low Supply Current:
60A (Normal Operation)
1A (Sleep-Mode Operation)
` ±0.006% FSR Accuracy at 16 Conv/sec
`Low Noise: 15VRMS
`Serial I/O Interface with Programmed Output for Mux and PGA
`Performs up to 100 Conv/sec
`±2pA Input Current
`50Hz/60Hz Rejection
60A (Normal Operation)
1A (Sleep-Mode Operation)
` ±0.006% FSR Accuracy at 16 Conv/sec
`Low Noise: 15VRMS
`Serial I/O Interface with Programmed Output for Mux and PGA
`Performs up to 100 Conv/sec
`±2pA Input Current
`50Hz/60Hz Rejection
MAX132 Typical Application
Remote Data Acquisition
Battery-Powered Instruments
Industrial Process Control
Transducer-Signal Measurement
Pressure, Flow, Temperature, Voltage
Current, Resistance, Weight
Battery-Powered Instruments
Industrial Process Control
Transducer-Signal Measurement
Pressure, Flow, Temperature, Voltage
Current, Resistance, Weight

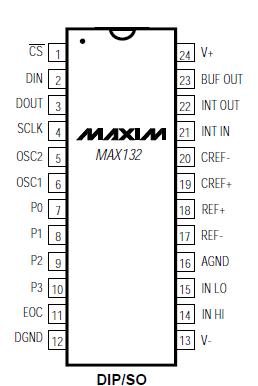

MAX132 Connection Diagram
MAX132
PDF/DataSheet Download
- Datasheet: MAX132
- File Size: 133898 KB
- Manufacturer: MAXIM [Maxim Integrated Products]
- Click here to Download
