The MAX1358/MAX1359/MAX1360 smart data-acquisition systems (DAS) are each based on a 16-bit, sigma-delta analog-to-digital converter (ADC) and system-support functionality for a microprocessor (µP)-based system. These devices integrate an ADC, DACs, operational amplifiers, internal 1.25V/2.048V/2.5V selectable reference, temperature sensors, analog switches, a 32kHz oscillator, a real-time clock (RTC) with alarm, a high-frequency-locked loop (FLL) clock, four user-programmable I/Os, an interrupt generator, and 1.8V and 2.7V voltage monitors in a single chip.
The MAX1358/MAX1359/MAX1360 have dual 10:1 differential input multiplexers (muxes) that accept signal levels from 0 to AVDD. An on-chip 1x to 8x programmable- gain amplifier (PGA) measures low-level signals and reduces external circuitry required.
The MAX1358/MAX1359/MAX1360 operate from a single +1.8V to +3.6V supply and consume only 1.4mA in normal mode and only 6.1µA in sleep mode.
The MAX1358 has two DACs with one uncommitted op amp; the MAX1359 has one DAC with two uncommitted op amps; and the MAX1360 has three uncommitted op amps.
The serial interface is compatible with either SPI™/QSPI™ or MICROWIRE™, and is used to power up, configure, and check the status of all functional blocks.
The MAX1358/MAX1359/MAX1360 are available in a space-saving 40-pin TQFN package and are specified over the commercial (0°C to +70°C) and the extended (-40°C to +85°C) temperature ranges.
MAX1358 Maximum Ratings
AVDD to AGND ...........................................................-0.3V to +4V
DVDD to DGND...........................................................-0.3V to +4V
AVDD to DVDD ..............................................................-4V to +4V
AGND to DGND........................................................-0.3V to +0.3V
CLK32K to DGND.......................................-0.3V to (DVDD + 0.3V)
UPIO_ to DGND........................................................-0.3V to +4V
Digital Inputs to DGND ............................................-0.3V to +4V
Analog Inputs to AGND .............................-0.3V to (AVDD + 0.3V)
Digital Output to DGND...........................-0.3V to (DVDD + 0.3V)
Analog Outputs to AGND...........................-0.3V to (AVDD + 0.3V)
Continuous Current Into Any Pin.........................................50mA
Continuous Power Dissipation (TA = +70°C)
40-Pin TQFN (derate 25.6mW/°C above +70°C) ......2051.3mW
Operating Temperature Range
MAX13_ _ CTL ......................................................0°C to +70°C
MAX13_ _ ETL ...................................................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
DVDD to DGND...........................................................-0.3V to +4V
AVDD to DVDD ..............................................................-4V to +4V
AGND to DGND........................................................-0.3V to +0.3V
CLK32K to DGND.......................................-0.3V to (DVDD + 0.3V)
UPIO_ to DGND........................................................-0.3V to +4V
Digital Inputs to DGND ............................................-0.3V to +4V
Analog Inputs to AGND .............................-0.3V to (AVDD + 0.3V)
Digital Output to DGND...........................-0.3V to (DVDD + 0.3V)
Analog Outputs to AGND...........................-0.3V to (AVDD + 0.3V)
Continuous Current Into Any Pin.........................................50mA
Continuous Power Dissipation (TA = +70°C)
40-Pin TQFN (derate 25.6mW/°C above +70°C) ......2051.3mW
Operating Temperature Range
MAX13_ _ CTL ......................................................0°C to +70°C
MAX13_ _ ETL ...................................................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
MAX1358 Features
· +1.8V to +3.6V Single-Supply Operation
· Multichannel 16-Bit Sigma-Delta ADC
10sps to 512sps Programmable Conversion Rate
Self and System Offset and Gain Calibration
PGA with Gains of 1, 2, 4, or 8
Unipolar and Bipolar Modes
10-Input Differential Multiplexer
· 10-Bit Force-Sense DACs
· Uncommitted Op Amps
· Dual SPDT Analog Switches
· 1.25V, 2.048V, or 2.5V Selectable Voltage Reference
· Internal Charge Pump
· System Support
Real Time Clock and Alarm Register
Internal/External Temperature Sensor
Internal Oscillator with Clock Output
User-Programmable I/O and Interrupt Generator
VDD Monitors
· SPI/QSPI/MICROWIRE, 4-Wire Serial Interface
· Space-Saving (6mm x 6mm x 0.8mm) 40-Pin TQFN Package
· Multichannel 16-Bit Sigma-Delta ADC
10sps to 512sps Programmable Conversion Rate
Self and System Offset and Gain Calibration
PGA with Gains of 1, 2, 4, or 8
Unipolar and Bipolar Modes
10-Input Differential Multiplexer
· 10-Bit Force-Sense DACs
· Uncommitted Op Amps
· Dual SPDT Analog Switches
· 1.25V, 2.048V, or 2.5V Selectable Voltage Reference
· Internal Charge Pump
· System Support
Real Time Clock and Alarm Register
Internal/External Temperature Sensor
Internal Oscillator with Clock Output
User-Programmable I/O and Interrupt Generator
VDD Monitors
· SPI/QSPI/MICROWIRE, 4-Wire Serial Interface
· Space-Saving (6mm x 6mm x 0.8mm) 40-Pin TQFN Package
MAX1358 Typical Application
·Battery-Powered and Portable Devices
·Electrochemical and Optical Sensors
·Medical Instruments
·Industrial Control
·Data-Acquisition Systems
·Electrochemical and Optical Sensors
·Medical Instruments
·Industrial Control
·Data-Acquisition Systems

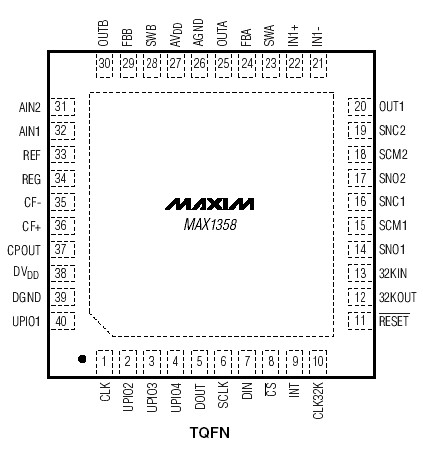

MAX1358 Connection Diagram
