Part Number: MAX1479
Description: The MAX1479 crystal-referenced phase-locked-loop (PLL) VHF/UHF transmitter is designed to transmit ASK, OOK, and FSK...
- Table of contents:
MAX1479
-
Suppliers
DataSheet
General Description
MAX1479 General Description
The MAX1479 crystal-referenced phase-locked-loop (PLL) VHF/UHF transmitter is designed to transmit ASK, OOK, and FSK data in the 300MHz to 450MHz frequency range. The MAX1479 supports data rates up to 100kbps in ASK mode and 20kbps in FSK mode (both Manchester coded). The device provides an adjustable output power of more than +10dBm into a 50 load. The crystal-based architecture of the MAX1479 eliminates many of the common problems of SAW-based transmitters by providing greater modulation depth, faster frequency settling, higher tolerance of the transmit frequency, and reduced temperature dependence. These improvements enable better overall receiver performance when using the MAX1479 together with a superheterodyne receiver such as the MAX1470, MAX1471, MAX1473, or MAX7033.
The MAX1479 is available in a 16-pin thin QFN package (3mm x 3mm) and is specified for the automotive temperature range from -40°C to +125°C.
MAX1479 Maximum Ratings
VDD to GND ................................................................-0.3V to +4V
All Other Pins to GND ................................... -0.3V to (VDD + 0.3V)
Continuous Power Dissipation (TA = +70°C)
16-Pin Thin QFN (derate 14.7mW/°C above +70°C)...1176.5mW
Operating Temperature Range ........................-40°C to +125°C
Junction Temperature...................................................... +150°C
Storage Temperature Range ........................... -60°C to +150°C
Lead Temperature (soldering, 10s) ................................. +300°C
All Other Pins to GND ................................... -0.3V to (VDD + 0.3V)
Continuous Power Dissipation (TA = +70°C)
16-Pin Thin QFN (derate 14.7mW/°C above +70°C)...1176.5mW
Operating Temperature Range ........................-40°C to +125°C
Junction Temperature...................................................... +150°C
Storage Temperature Range ........................... -60°C to +150°C
Lead Temperature (soldering, 10s) ................................. +300°C
MAX1479 Features
ETSI-Compliant EN300 220
+2.1V to +3.6V Single-Supply Operation
Supports ASK, OOK, and FSK Modulations
Adjustable FSK Shift
+10dBm Output Power into 50 Load
Low Supply Current (6.7mA in ASK Mode,and 10.5mA in FSK Mode)
Uses Small Low-Cost Crystal
Small 16-Pin Thin QFN Package
Fast-On Oscillator-200s Startup Time
Programmable Clock Output
+2.1V to +3.6V Single-Supply Operation
Supports ASK, OOK, and FSK Modulations
Adjustable FSK Shift
+10dBm Output Power into 50 Load
Low Supply Current (6.7mA in ASK Mode,and 10.5mA in FSK Mode)
Uses Small Low-Cost Crystal
Small 16-Pin Thin QFN Package
Fast-On Oscillator-200s Startup Time
Programmable Clock Output
MAX1479 Typical Application
Remote Keyless Entry
Tire Pressure Monitoring
Security Systems
Radio-Controlled Toys
Wireless Game Consoles
Wireless Computer Peripherals
Wireless Sensors
RF Remote Controls
Garage Door Openers
Tire Pressure Monitoring
Security Systems
Radio-Controlled Toys
Wireless Game Consoles
Wireless Computer Peripherals
Wireless Sensors
RF Remote Controls
Garage Door Openers

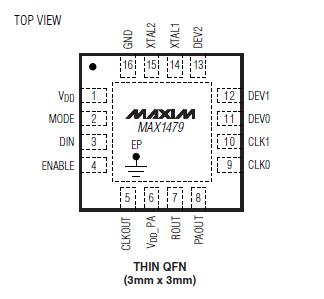

MAX1479 Connection Diagram
