MFG:N/A Package Cooled:NA/ D/C:09+
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: The MAX154/MAX158 are high-speed multi-channel analog-to-digital converters (ADCs). The MAX154 has four a...
The MAX154/MAX158 are high-speed multi-channel analog-to-digital converters (ADCs). The MAX154 has four analog input channels while the MAX158 has eight channels. Conversion time for both devices is 2.5s. The MAX154/MAX158 also feature a 2.5V on-chip reference,
forming a complete high-speed data acquisition system.
Both converters include a built-in track/hold, eliminating the need for an external track/hold. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply.
Microprocessor interfaces are simplified by the ADC's ability to appear as a memory location or I/O port without the need for external logic. The data outputs use latched, three-state buffer circuitry to allow direct connection to a microprocessor data bus or system input port.
Supply Voltage, VDD to GND.............................................0V, +10V
Voltage at Any Other Pins............................GND -0.3V, VDD +0.3V
Output Current (REF OUT)......................................................30mA
Power Dissipation (any package) to +75°C .......................450mW
Derate above +25°C by .............................................6mW/°C
Operating Temperature Ranges
MAX15_ _C_ _.....................................................0°C to +70°C
MAX15_ _E_ _..................................................-40°C to +85°C
MAX15_ _M_ _ ...............................................-55°C to +125°C
Storage Temperature Range ..............................-65°C to +160°C
Lead Temperature (soldering, 10sec) ................................+300°C
© One-Chip Data Acquisition System
© Four or Eight Analog Input Channels
© 2.5s per Channel Conversion Time
© Internal 2.5V Reference
© Built-In Track/Hold Function
© 1/2LSB Error Specification
© Single +5V Supply Operation
© No External Clock
© New Space-Saving SSOP Package
Digital Signal Processing
High-Speed Data Acquisition
Telecommunications
High-Speed Servo Control
Audio Instrumentation

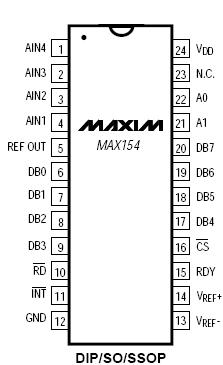

MAX154
PDF/DataSheet Download
