Purchase MAX2338, In-stock MAX2338 From SeekIC.
MFG:MAX D/C:O1/O2
Part Number: MAX2338
MFG: MAX
D/C: O1/O2
Description:
The MAX2338 receiver RF front-end IC is designed for dual-band CDMA cellular phones and can als...
- Table of contents:
MAX2338
-
Suppliers
DataSheet
General Description
MAX2338 General Description
The MAX2338 receiver RF front-end IC is designed for dual-band CDMA cellular phones and can also be used in dual-band TDMA, GSM, or EDGE cellular phones. Thanks to the MAX2338's on-chip low-power LO divider, the cellular VCO module can be eliminated.
The MAX2338 includes a low-noise amplifier (LNA) with an adjustable high-input third-order intercept point (IIP3) to minimize intermodulation and cross-modulation in the presence of large interfering signals. For cellular band operation, a low-gain LNA is available for higher cascaded IIP3 at lower current.
The CDMA mixers are designed for high linearity, low noise, and differential IF outputs. The FM mixer is designed for lower current and single-ended output.
The MAX2338 triple-mode LNA/mixer includes an onchip LO frequency divider to allow the use of a single VCO for both bands. This device is available in an ultrasmall 28-pin leadless QFN package.
MAX2338 Maximum Ratings
VCC to GND..........................................................+0.3V to +4.3V
Digital Input Voltage to GND ......................-0.3V to (VCC + 0.3V)
LNA Input Level...............................................................1V peak
LO, Mixer Input Levels .....................................................+5dBm
Digital Input Current .......................................................±10mA
Continuous Power Dissipation (TA = +70°C)
28-Pin QFN (derate 28.5mW/°C above TA = +70°C)............2W
Operating Temperature Range ........................-40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10s) .............................. +300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
Digital Input Voltage to GND ......................-0.3V to (VCC + 0.3V)
LNA Input Level...............................................................1V peak
LO, Mixer Input Levels .....................................................+5dBm
Digital Input Current .......................................................±10mA
Continuous Power Dissipation (TA = +70°C)
28-Pin QFN (derate 28.5mW/°C above TA = +70°C)............2W
Operating Temperature Range ........................-40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature Range .........................-65°C to +150°C
Lead Temperature (soldering, 10s) .............................. +300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
MAX2338 Features
·1.4dB LNA Noise Figure
·15dB LNA Gain
·Mixer Noise Figure 7.5dB (CDMA) 8.7dB (AMPS)
·Mixer Gain 14.5dB PCS 13.3dB Cellular 8.8dB AMPS
·LO Frequency Divider, Saves VCO Module
·LO Output Buffers for TX
·Ultra-Small 28-Pin Leadless Package
·15dB LNA Gain
·Mixer Noise Figure 7.5dB (CDMA) 8.7dB (AMPS)
·Mixer Gain 14.5dB PCS 13.3dB Cellular 8.8dB AMPS
·LO Frequency Divider, Saves VCO Module
·LO Output Buffers for TX
·Ultra-Small 28-Pin Leadless Package
MAX2338 Typical Application
·Dual-Band, Triple-Mode PCS/Cellular Phones
·Dual-Mode Cellular Phones
·Dual-Mode Cellular Phones

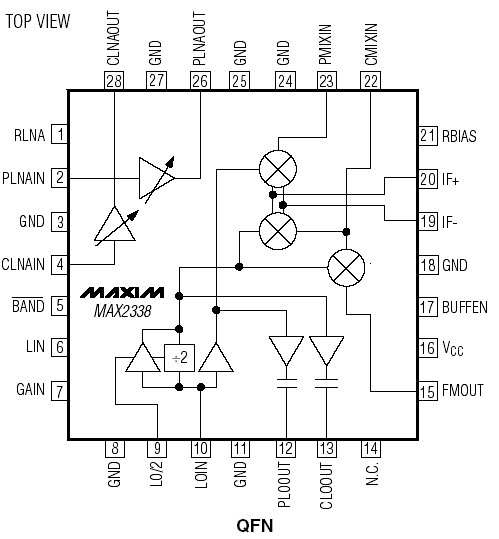

MAX2338 Connection Diagram
MAX2338
