General Description
MAX2659 General Description
The MAX2659 high-gain, low-noise amplifier (LNA) is designed for GPS, Galileo, and GLONASS applications. Designed in Maxim's advanced SiGe process, the device achieves a 20.5dB gain and an ultra-low-noise figure of 0.8dB while maximizing the input-referred 1dB compression point and the 3rd-order intercept point at - 12dBm and -5dBm, respectively.
The MAX2659 operates from a +1.6V to +3.3V single supply and consumes only 4.1mA. The shutdown feature in the device reduces the supply current to be less than 1A. The MAX2659 is available in a very small, lead-free, RoHS-compliant, 1.5mm x 1.0mm x 0.75mm, 6-pin DFN package.
MAX2659 Maximum Ratings
VCC to GND...........................................................-0.3V to +4.2V
Other Pins to GND....................-0.3V to + Operating VCC + 0.3V
Maximum RF Input Power .............................................+10dBm
Continuous Power Dissipation (TA = +70°C)
6-Pin DFN (derates 2.1mW/°C above +70°C)............167mW
Operating Temperature Range .......................-40°C to +85°C
Junction Temperature....................................................+150°C
Storage Temperature Range ........................ -65°C to +160°C
Lead Temperature (soldering, 10s) ...............................+260°C
Other Pins to GND....................-0.3V to + Operating VCC + 0.3V
Maximum RF Input Power .............................................+10dBm
Continuous Power Dissipation (TA = +70°C)
6-Pin DFN (derates 2.1mW/°C above +70°C)............167mW
Operating Temperature Range .......................-40°C to +85°C
Junction Temperature....................................................+150°C
Storage Temperature Range ........................ -65°C to +160°C
Lead Temperature (soldering, 10s) ...............................+260°C
MAX2659 Features
` High-Power Gain: 20.5dB
` Ultra-Low-Noise Figure: 0.8dB
` Integrated 50 Output Matching Circuit
` Low Supply Current: 4.1mA
` Wide Supply Voltage Range: 1.6V to 3.3V
` Low Bill of Materials
` Small Footprint: 1.5mm x 1.0mm
` Thin Profile: 0.75mm
` Lead-Free and RoHS-Compliant Package
` Ultra-Low-Noise Figure: 0.8dB
` Integrated 50 Output Matching Circuit
` Low Supply Current: 4.1mA
` Wide Supply Voltage Range: 1.6V to 3.3V
` Low Bill of Materials
` Small Footprint: 1.5mm x 1.0mm
` Thin Profile: 0.75mm
` Lead-Free and RoHS-Compliant Package
MAX2659 Typical Application
Automotive Navigation
Location-Enabled Mobile Devices
Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC/Ultra-Mobile PC
Recreational, Marine Navigation
Avionics
Location-Enabled Mobile Devices
Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC/Ultra-Mobile PC
Recreational, Marine Navigation
Avionics

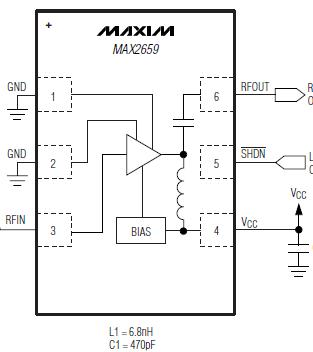

MAX2659 Connection Diagram
