Part Number: MAX3057
Description: The MAX3050/MAX3057 interface between the CAN protocol controller and the physical wires of the bus lines in a contr...
- Table of contents:
MAX3057
-
Suppliers
DataSheet
General Description
MAX3057 General Description
The MAX3050/MAX3057 interface between the CAN protocol controller and the physical wires of the bus lines in a controller area network (CAN). They are primarily intended for automotive systems requiring data rates up to 2Mbps and feature ±80V fault protection against short circuits in high-voltage power buses. They provide differential transmit capability to the bus and differential receive capability to the CAN controller.
The MAX3050/MAX3057 have four modes of operation: high speed, slope control, standby, and shutdown. High-speed mode allows data rates up to 2Mbps. In slope-control mode, data rates are 40kbps to 500kbps, so the effects of EMI are reduced, and unshielded twisted or parallel cable can be used. In standby mode, the transmitters are shut off and the receivers are put into low-current mode. In shutdown mode, the transmitter and receiver are switched off.
The MAX3050 has an AutoShutdown™ function that puts the device into a 15A shutdown mode when the bus or CAN controller is inactive for 4ms or longer.
The MAX3050/MAX3057 are available in an 8-pin SO package and are specified for operation from -40°C to +125°C.
MAX3057 Maximum Ratings
VCC to GND ............................................................ -0.3V to +6V
TXD, RS, RXD, SHDN to GND........................-0.3V to (VCC + 0.3V)
CANH, CANL to GND................................................-80V to +80V
RXD Shorted to GND..................................................Continuous
Continuous Power Dissipation (TA = +70°C)
8-Pin SO (derate 5.9mW/°C above +70°C) ...................470mW
Operating Temperature Range .........................-40°C to +125°C
Junction Temperature......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
TXD, RS, RXD, SHDN to GND........................-0.3V to (VCC + 0.3V)
CANH, CANL to GND................................................-80V to +80V
RXD Shorted to GND..................................................Continuous
Continuous Power Dissipation (TA = +70°C)
8-Pin SO (derate 5.9mW/°C above +70°C) ...................470mW
Operating Temperature Range .........................-40°C to +125°C
Junction Temperature......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
MAX3057 Features
±80V Fault Protection for 42V Systems
Four Operating Modes
High-Speed Operation Up to 2Mbps
Slope-Control Mode to Reduce EMI
(40kbps to 500kbps)
Standby Mode
Low-Current Shutdown Mode
AutoShutdown when Device Is Inactive
(MAX3050)
Automatic Wake-Up from Shutdown (MAX3050)
Thermal Shutdown
Current Limiting
Fully Compatible with the ISO 11898 Standard*
Four Operating Modes
High-Speed Operation Up to 2Mbps
Slope-Control Mode to Reduce EMI
(40kbps to 500kbps)
Standby Mode
Low-Current Shutdown Mode
AutoShutdown when Device Is Inactive
(MAX3050)
Automatic Wake-Up from Shutdown (MAX3050)
Thermal Shutdown
Current Limiting
Fully Compatible with the ISO 11898 Standard*
MAX3057 Typical Application
Automotive Systems
HVAC Controls
Telecom 72V systems
HVAC Controls
Telecom 72V systems

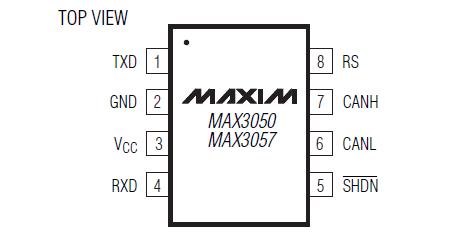

MAX3057 Connection Diagram
MAX3057
