MAX314 General Description
MAX314 Maximum Ratings
Voltages Referenced to GND
V+......................................................................-0.3V to +44V
V- ......................................................................+0.3V to -44V
V+ to V-.............................................................-0.3V to +44V
VL..................................................(GND - 0.3V) to (V+ + 0.3V)
All Other Pins (Note 1) ...........................(V- - 2V) to (V+ + 2V)
or 30mA (whichever occurs first)
Continuous Current (COM_, NO_, NC_).....................±100mA
Peak Current (COM_, NO_, NC_) ..............................±300mA
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 10.53mW/°C above +70°C) .......842mW
Narrow SO (derate 8.70mW/°C above +70°C) .........696mW
CERDIP (derate 10.00mW/°C above +70°C).............800mW
TSSOP (derate 6.7mW/°C above +70°C) ..................457mW
Operating Temperature Ranges
MAX31_C_ ........................................................0°C to +70°C
MAX31_E_ .....................................................-40°C to +85°C
MAX31_M_....................................................-55°C to +125°C
Storage Temperature Range .......................-65°C to +150°C
Lead Temperature (soldering, 10sec) ..........................+300°C
MAX314 Features
Pin Compatible with DG411/DG412/DG413
Low On-Resistance (6.5½ typical)
Guaranteed RON Match Between Channels (1.5½ max)
Guaranteed RON Flatness over Specified Signal Range (2½ max)
Guaranteed ESD Protection > 2000V per Method 3015.7
Crosstalk > 96dB at 20kHz
Single-Supply Operation: +4.5V to +30V Dual-Supply Operation: ±4.5V to ±20V
Rail-to-Rail Signal Handling
MAX314 Typical Application
Test Equipment
Communication Systems
PBX, PABX Systems
Audio Signal Routing
Avionics
Sample-and-Hold Circuits
Data Acquisition Systems

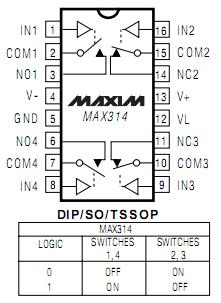

MAX314 Connection Diagram
