Purchase MAX3250, In-stock MAX3250 From SeekIC.
Part Number: MAX3250
Description: The MAX3250 is a 3.0V to 5.5V powered, ±50V isolated EIA/TIA-232 and V.28/V.24 communications interfac...
- Table of contents:
MAX3250
-
Suppliers
DataSheet
General Description
MAX3250 General Description
The MAX3250 is a 3.0V to 5.5V powered, ±50V isolated EIA/TIA-232 and V.28/V.24 communications interface with high data-rate capabilities. The MAX3250 is a dualdie part that operates with up to ±50V difference between the RS-232 side and the logic side (ISOCOM to GND). This makes the device ideal for operation in noisy conditions with high common-mode voltages. This feature prevents damage to the device if RS-232 lines are inadvertently short-circuited to a +24V or ±48V power bus.
The MAX3250 is powered by a single 3V to 5.5V supply on the logic side. Power is transferred from the logic side to the isolated side by ±100V external capacitors. The MAX3250 has two receivers (Rx) and two drivers (Tx) and is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels. The transceivers have a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3V to 5.5V supply with a dual charge pump. The device features aFAULT open-drain output to signal an excessive isolated-side voltage condition on any of the RS232 inputs. This output can drive an alarm LED or ca be monitored by the processor to prevent operation under these conditions. The receiver outputs are high impedance in shutdown, allowing multiple interfaces (IrDA, RS-232, RS-485) to be connected to the same UART. The MAX3250 is available in a space-saving 28-pin SSOP package.
MAX3250 Maximum Ratings
All Voltages Referenced to GND, Unless Otherwise Noted.
VCC...........................................................................-0.3V to +6V
ISOCOM................................................................................±80V
ISOVCC to ISOCOM....................................................-0.3V to +6V
V+ to ISOCOM (Note 1)..............................................-0.3V to +7V
V- to ISOCOM (Note 1)..............................................+0.3V to -7V
V+ + |V-| (Note 1)....................................................................13V
Input VoltagesT_IN,
SHDN..........................................................................-0.3V to +6V
R_IN to ISOCOM.....................................................................±25V
Output Voltages
T_OUT to ISOCOM................................................................±13.2V
R_OUT.............................................................-0.3V to (VCC+ 0.3V)
FAULT...........................................................................-0.3V to +6V
C1-, C2-...........................................................-0.3V to (VCC+ 0.3V)
C1+, C2+, C3+, C3-, C4+, C4-
to ISOCOM..................................................-0.3V to (ISOVCC+ 0.3V)
T_OUT Current.....................30mA (continuous), 50mA (peak, 10µs)
R_IN Current........................30mA (continuous), 50mA (peak, 10µs)
ISOCOM Current...........30mA (continuous), 50mA (peak, 10µs)
Short-Circuit Duration T_OUT to ISOCOM........................Continuous
Continuous Power Dissipation (TA= +70°C)
28-Pin SSOP (derate 9.5mW/°C above +70°C)....................762mW
Operating Temperature Ranges
MAX3250CAI.....................................................0°C to +70°C
MAX3250EAI..................................................-40°C to +85°C
Storage Temperature Range..................................-65°C to +150°C
Lead Temperature (soldering, 10s).......................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 1:
V+ and V- can have a maximum magnitude of 7V, but their absolute difference cannot exceed 13V.
MAX3250 Features
±50V Isolation
20µA Supply Current in Shutdown
250kbps Guaranteed Data Rate
FAULT Output
High-Impedance Transmitter and Receiver
Outputs in Shutdown
Space-Saving SSOP Package
Inductorless/Transformerless Design Simplifies
EMI Compliance
Low-Cost Replacement for Opto-Isolated
Transceivers
Meets EIA/TIA-232 Specifications Down to 3.0V
20µA Supply Current in Shutdown
250kbps Guaranteed Data Rate
FAULT Output
High-Impedance Transmitter and Receiver
Outputs in Shutdown
Space-Saving SSOP Package
Inductorless/Transformerless Design Simplifies
EMI Compliance
Low-Cost Replacement for Opto-Isolated
Transceivers
Meets EIA/TIA-232 Specifications Down to 3.0V
MAX3250 Typical Application
Industrial Control
Programmable Logic Controller
Point-of-Sale Equipment
PC-to-Router Connections
Diagnostic Ports
Telecom Equipment
Programmable Logic Controller
Point-of-Sale Equipment
PC-to-Router Connections
Diagnostic Ports
Telecom Equipment

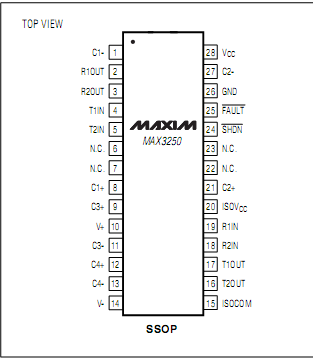

MAX3250 Connection Diagram
MAX3250
