MFG:MAXIM Package Cooled:CDIP D/C:8
MFG: MAXIM
Package Cooled: CDIP
D/C: 8
Description: The MAX3270 is a complete Clock Recovery and Data Retiming IC for 155Mbps and 622Mbps SDH/SONET and ATM applications...
The MAX3270 is a complete Clock Recovery and Data Retiming IC for 155Mbps and 622Mbps SDH/SONET and ATM applications. The MAX3270 meets Bellcore and CCITT jitter tolerance specifications ensuring error- free data recovery. Recovered clock and data are phase aligned using a fully integrated phase-locked loop (PLL). An output frequency monitor (FM) is includ-ed to detect loss of PLL acquisition or a loss of input data.

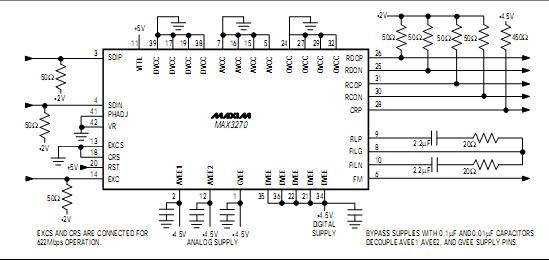

The MAX3270 has differential ECL input and output interfaces, so it is less susceptible to noise in a high- frequency environment. The fully integrated PLL includes an integrated phfrequency detector that eliminates the need for external references.
VTTL to GND..........................................................-0.5V to +8.0V
VCC to GND...........................................................-0.5V to +8.0V
VEE to GND............................................................-8.0V to +0.5V
SDIP, SDIN, EXC....................................................-8.0V to +0.5V
RDOP, RDON, RCOP, RCON, CRP.......................-8.0V to +0.5V
EXCS, RST, CRS.....................................................-0.5V to +8.0V
FILP, FILG, FILN.....................................................-8.0V to +0.5V
PHADJ, VR..............................................................-8.0V to +8.0V
FM .........................................................................-8.0V to +8.0V
Input Differential Voltage Level, SDIP, SDIN.......................+3.0V
Continuous Power Dissipation (TA= +85°C)........................1.3W
Operating Temperature Range..........................-40°C to +85°C
Storage Temperature Range...........................-55°C to +150°C
Lead Temperature (soldering, 10sec)..............................+300°C
MAX3270EMH
PDF/DataSheet Download
The MAX3270 is a complete Clock Recovery and Data Retiming IC for 155Mbps and 622Mbps SDH/SONET and ATM applications. The MAX3270 meets Bellcore and CCITT jitter tolerance specifications ensuring errorfree data recovery. Recovered clock and data are phase al...
