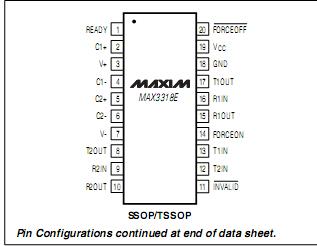

MAX3316EMAX3319E

V_CC to GND.................................................................-0.3V to +6V
V+ to GND (Note 1).....................................................-0.3V to +7V
V- to GND (Note 1)......................................................-7V to +0.3V
V+ + |V-| (Note 1)...................................................................+13V
Input Voltages
T_IN, EN, SHDN, FORCEON,
FORCEOFF  to GND.......................................................-0.3V to +6V
R_IN to GND............................................................................±25V
Output Voltages
T_OUT to GND......................................................................±13.2V
R_OUT,
INVALID , READY to GND.......-0.3V to (V_CC+ 0.3V)
Short-Circuit Duration, T_OUT to GND...........................Continuous
Continuous Power Dissipation (T_A= +70°C)
16-Pin SSOP (derate 7.14mW/°C above +70°C)................571mW
20-Pin SSOP (derate 8.00mW/°C above +70°C)................640mW
20-Pin TSSOP (derate 7.00mW/°C above +70°C)..............559mW
Operating Temperature Range
MAX331_EC_ _.........................................................0°C to +70°C
MAX331_EE_ _......................................................-40°C to +85°C
Storage Temperature Range...............................-65°C to +150°C
Lead Temperature (soldering, 10s)....................................+300°C


Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 1:
V+ and V- can have maximum magnitudes of 7V, but their absolute difference cannot exceed 13V.
