MFG:MAXIM Package Cooled:SSOP D/C:8
MFG: MAXIM
Package Cooled: SSOP
D/C: 8

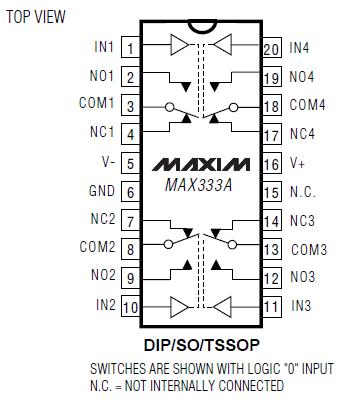

Description: The MAX333A is a precision, quad, single-pole doublethrow (SPDT) analog switch. The four independent...
V+ to V- ......................................................................44V
VIN, VCOM, VNO, VNC ...........................................V- to V+
(VNO - VNC) ................................................................32V
V+ to Ground...............................................................30V
V- to Ground...............................................................-30V
Current, Any Terminal Except VCOM, VNO, or VNC.....30mA
Continuous Current, VCOM, VNO, or VNC...................20mA
Peak Current, VCOM, VNO, or VNC
(Pulsed at 1ms, 10% duty cycle max) ........................70mA
ESD ...........................................................................2000V
Continuous Power Dissipation (TA = +70°C) (Note 1)
Plastic DIP (derate above +70°C by 11.11mW/°C) ..889mW
SO (derate above +70°C by 10.00mW/°C)..............800mW
CERDIP (derate above +70°C by 11.11mW/°C).......889mW
TSSOP (derate above +70°C by 7mW/°C) ...............559mW
Operating Temperature Ranges:
MAX333AC_ _ ..................................................0°C to +70°C
MAX333AE_ _ ...............................................-40°C to +85°C
MAX333AMJP...............................................-55°C to +125°C
Storage Temperature Range ......................-65°C to +150°C
Lead Temperature (soldering, 10sec) .........................+300°C
Upgraded Replacement for a DG211/DG212 Pair or Two DG403s
Low On Resistance < 17½ Typical (35½ Max)
Guaranteed Matched On Resistance Between Channels < 2½
Guaranteed Flat On Resistance over Analog Signal Range Æ3½ Max
Guaranteed Charge Injection < 10pC
Guaranteed Off-Channel Leakage < 6nA at +85°C
ESD Guaranteed > 2000V per Method 3015.7
Single-Supply Operation (+10V to +30V) Bipolar-Supply Operation (±4.5V to ±20V)
TTL-/CMOS-Logic Compatibility
Rail-to-Rail Analog Signal Handling Capability
Test Equipment Communications Systems
PBX, PABX Heads-Up Displays
Portable Instruments
MAX333A
