Part Number: MAX3362
Description: The MAX3362 low-power, high-speed transceiver for RS-485/RS-422 communication operates from a single +3.3V power supply...
- Table of contents:
MAX3362
-
Suppliers
DataSheet
General Description
MAX3362 General Description
The MAX3362 low-power, high-speed transceiver for RS-485/RS-422 communication operates from a single +3.3V power supply. The device contains one differential transceiver consisting of a line driver and receiver. The transceiver operates at data rates up to 20Mbps, with an output skew of less than 6ns. Driver and receiver propagation delays are guaranteed below 50ns. This fast switching and low skew make the MAX3362 ideal for multidrop clock/data distribution applications.
The output level is guaranteed at +1.5V with a standard 54 load, compliant with RS-485 specifications. The transceiver draws 1.7mA supply current when
unloaded or fully loaded with the drivers disabled. Additionally, the MAX3362 has a low-power shutdown mode, reducing the supply current to 1A.
The MAX3362 has a 1/8-unit-load receiver input impedance, allowing up to 256 transceivers on the bus. The MAX3362 is designed for half-duplex communication. The device has a hot-swap feature that eliminates false transitions on the data cable during circuit initialization.The drivers are short-circuit current limited, and a thermal shutdown circuit protects against excessive power dissipation.
The MAX3362 is available in an 8-pin SOT package and specified over industrial and automotive temperature ranges.
MAX3362 Maximum Ratings
All voltages with respect to GND.
VCC, RE, DE, DI ......................................................-0.3V to +6V
Receiver Input Voltages, Driver Output
Voltages (A, B) ........................................................-8V to +13V
Receiver Input Current, Driver Output
Current (A, B) .................................................................250mA
|VA - VB|..............................................................................+8V
Receiver Output Voltage (RO)......................-0.3V to (VCC + 0.3V)
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT (derate 9.7mW/°C above +70°C) ............... 777mW
Operating Temperature Range
MAX3362E__ .................................................. -40°C to +85°C
MAX3362A__ ................................................ -40°C to +125°C
Storage Temperature Range ...........................-65°C to +150°C
Junction Temperature......................................................+150°C
Lead Temperature (soldering, 10s) .................................+300°C
VCC, RE, DE, DI ......................................................-0.3V to +6V
Receiver Input Voltages, Driver Output
Voltages (A, B) ........................................................-8V to +13V
Receiver Input Current, Driver Output
Current (A, B) .................................................................250mA
|VA - VB|..............................................................................+8V
Receiver Output Voltage (RO)......................-0.3V to (VCC + 0.3V)
Continuous Power Dissipation (TA = +70°C)
8-Pin SOT (derate 9.7mW/°C above +70°C) ............... 777mW
Operating Temperature Range
MAX3362E__ .................................................. -40°C to +85°C
MAX3362A__ ................................................ -40°C to +125°C
Storage Temperature Range ...........................-65°C to +150°C
Junction Temperature......................................................+150°C
Lead Temperature (soldering, 10s) .................................+300°C
MAX3362 Features
Space-Saving 8-Pin SOT Package
Guaranteed 20Mbps Data Rate
Operates from a Single +3.3V Supply
6ns (max) Transmitter and Receiver Skew
Hot-Swap Feature
Interoperable with +5V Logic
Allows up to 256 Transceivers on the Bus
1A Low-Power Shutdown Mode
1.7mA Operating Supply Current
-7V to +12V Common-Mode Range
Current Limiting and Thermal Shutdown
Half-Duplex Operation
Automotive Temperature Range Variants
Guaranteed 20Mbps Data Rate
Operates from a Single +3.3V Supply
6ns (max) Transmitter and Receiver Skew
Hot-Swap Feature
Interoperable with +5V Logic
Allows up to 256 Transceivers on the Bus
1A Low-Power Shutdown Mode
1.7mA Operating Supply Current
-7V to +12V Common-Mode Range
Current Limiting and Thermal Shutdown
Half-Duplex Operation
Automotive Temperature Range Variants
MAX3362 Typical Application
Clock/Data Distribution
Telecom Equipment
Security Equipment
Point-of-Sale Equipment
Industrial Controls
Telecom Equipment
Security Equipment
Point-of-Sale Equipment
Industrial Controls

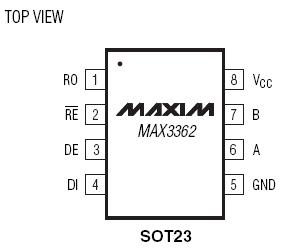

MAX3362 Connection Diagram
MAX3362
