Part Number: MAX3667
Description: The MAX3667 is a complete, +3.3V laser driver with automatic power control (APC), designed for SDH/ SO...
- Table of contents:
MAX3667
-
Suppliers
DataSheet
General Description
MAX3667 General Description
The MAX3667 is a complete, +3.3V laser driver with automatic power control (APC), designed for SDH/ SONET applications up to 622Mbps. It accepts differential PECL inputs, provides single-ended bias and modulation currents, and operates over a -40°C to +85°C temperature range.
A temperature-stabilized reference voltage simplifies laser current programming. It allows external programming of the modulation current between 5mAp-p and 60mAp-p, and of the bias current between 5mA and 90mA.
The APC function, which incorporates a monitor photodiode, an external resistor, and two external capacitors, maintains constant laser output power. Two current monitors provide high-speed signals that are directly proportional to the bias and modulation currents. Additional features include disable/enable control and a slow-start feature with a minimum turn-on time of 50ns. The MAX3667 is available in die form and in a 32-pin TQFP package.
MAX3667 Maximum Ratings
Supply Voltage, VCC.................................................-0.5V to +7.0V
Current into IBIAS................................................-50mA to 350mA
Current into IMOD ...............................................-50mA to 200mA
Current into MD ...................................................................±7mA
Voltage at APC, MODMON,
BIASMON, COMP............................................-0.5V to (VCC + 0.5V)
Voltage at IN+, IN-, DISABLE, MODSET,
BISASSET, APCSET, PULLUP..........................-0.5V to (VCC + 0.5V)
Continuous Power Dissipation (TA = +85°C)
TQFP (derate 11.1mW/°C above +85°C).........................721mW
Operating Temperature Range ..........................-40°C to +85°C
Operating Junction Temperature Range (die) ..-55°C to +175°C
Processing Temperature (die) .........................................+400°C
Storage Temperature Range .............................-65°C to +160°C
Lead Temperature (soldering, 10sec) .............................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
Current into IBIAS................................................-50mA to 350mA
Current into IMOD ...............................................-50mA to 200mA
Current into MD ...................................................................±7mA
Voltage at APC, MODMON,
BIASMON, COMP............................................-0.5V to (VCC + 0.5V)
Voltage at IN+, IN-, DISABLE, MODSET,
BISASSET, APCSET, PULLUP..........................-0.5V to (VCC + 0.5V)
Continuous Power Dissipation (TA = +85°C)
TQFP (derate 11.1mW/°C above +85°C).........................721mW
Operating Temperature Range ..........................-40°C to +85°C
Operating Junction Temperature Range (die) ..-55°C to +175°C
Processing Temperature (die) .........................................+400°C
Storage Temperature Range .............................-65°C to +160°C
Lead Temperature (soldering, 10sec) .............................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
MAX3667 Features
·Single +3.3V or +5.0V Operation
·Automatic Average Power Control
·Bias Current and Modulation Current Monitor Outputs
·TTL-Compatible Disable Input
·Temperature-Compensated Reference
·PECL-Compatible Data Inputs
·Automatic Average Power Control
·Bias Current and Modulation Current Monitor Outputs
·TTL-Compatible Disable Input
·Temperature-Compensated Reference
·PECL-Compatible Data Inputs
MAX3667 Typical Application
·622Mbps SDH/SONET Access Nodes
·Laser Driver Transmitters
·Section Repeaters
·Laser Driver Transmitters
·Section Repeaters

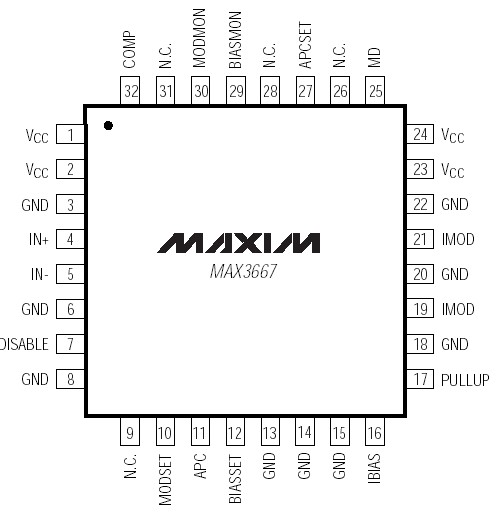

MAX3667 Connection Diagram
MAX3667
