Purchase MAX3681, In-stock MAX3681 From SeekIC.
Part Number: MAX3681
Description: The MAX3681 deserializer is ideal for converting 622Mbps serial data to 4-bit-wide, 155Mbps parallel d...
- Table of contents:
MAX3681
-
Suppliers
DataSheet
General Description
MAX3681 General Description
The MAX3681 deserializer is ideal for converting 622Mbps serial data to 4-bit-wide, 155Mbps parallel data in ATM and SDH/SONET applications. Operating from a single +3.3V supply, this device accepts PECL serial clock and data inputs, and delivers low-voltage differential-signal (LVDS) clock and data outputs for interfacing with high-speed digital circuitry. It also provides an LVDS synchronization input that enables data realignment and reframing.
The MAX3681 is available in the extended-industrial temperature range (-40°C to +85°C), in a 24-pin SSOP package.
MAX3681 Maximum Ratings
Terminal Voltage (with respect to GND)
VCC ...........................................................................-0.5V to 5V
PECL Inputs (SD+/-, SCLK+/-)...................................VCC + 0.5V
LVDS Inputs (SYNC+/-)..............................................VCC + 0.5V
Output Current, LVDS Outputs (PCLK+/-, PD_+/-) ............10mA
Continuous Power Dissipation (TA = +85°C)
SSOP (derate 8.00mW/°C above +85°C) ...................520mW
Operating Temperature Range ......................-40°C to +85°C
Storage Temperature Range .......................-65°C to +160°C
Lead Temperature (soldering, 10sec) .........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
VCC ...........................................................................-0.5V to 5V
PECL Inputs (SD+/-, SCLK+/-)...................................VCC + 0.5V
LVDS Inputs (SYNC+/-)..............................................VCC + 0.5V
Output Current, LVDS Outputs (PCLK+/-, PD_+/-) ............10mA
Continuous Power Dissipation (TA = +85°C)
SSOP (derate 8.00mW/°C above +85°C) ...................520mW
Operating Temperature Range ......................-40°C to +85°C
Storage Temperature Range .......................-65°C to +160°C
Lead Temperature (soldering, 10sec) .........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
MAX3681 Features
· Single +3.3V Supply
· 622Mbps Serial to 155Mbps Parallel Conversion
· 265mW Power
· LVDS Data Outputs and Synchronization Inputs
· Synchronization Input for Data Realignment and Reframing
· Differential 3.3V PECL Clock and Data Inputs
· 622Mbps Serial to 155Mbps Parallel Conversion
· 265mW Power
· LVDS Data Outputs and Synchronization Inputs
· Synchronization Input for Data Realignment and Reframing
· Differential 3.3V PECL Clock and Data Inputs
MAX3681 Typical Application
·622Mbps SDH/SONET Transmission Systems
·622Mbps ATM/SONET Access Nodes
·Add/Drop Multiplexers
·Digital Cross Connects
·622Mbps ATM/SONET Access Nodes
·Add/Drop Multiplexers
·Digital Cross Connects

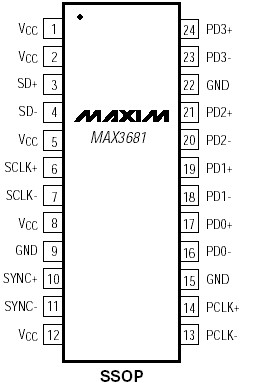

MAX3681 Connection Diagram
MAX3681
