Part Number: MAX3953
Description: The MAX3953 is a 9.953Gbps/10.3125Gbps 1:16 deserializer with clock recovery for 10Gbps Ethernet and O...
- Table of contents:
MAX3953
-
Suppliers
DataSheet
General Description
MAX3953 General Description
The MAX3953 is a 9.953Gbps/10.3125Gbps 1:16 deserializer with clock recovery for 10Gbps Ethernet and OC192 SONET applications. The integrated phaselocked loop (PLL) recovers a clock from the serial data input, and the data is then retimed and demultiplexed into 16 parallel LVDS outputs. Using Maxim's SiGe bipolar process, the MAX3953 can achieve 0.75UI of high-frequency jitter tolerance comprised of 0.50UI of deterministic jitter and 0.25UI of random jitter.
The MAX3953 includes TTL-compatible loss-of-lock (LOL) and sync-error (SYNC_ERR) indicators that allow the user to verify that the part has locked on to incoming data. In case the incoming data becomes invalid, a clock holdover function is provided to maintain a valid reference clock to the upstream device. For proper operation, a reference clock of baud rate/64 or baud rate/16 is required.
The MAX3953 operates from a single +3.3V power supply and typically dissipates 1.5W. The operating temperature range is from 0°C to +85°C. The MAX3953 is available in a 68-pin QFN package.
MAX3953 Maximum Ratings
Supply Voltage (VCC) ......................................-0.5V to +5.0V
Input Voltage Levels
(SDI+, SDI-)................................(VCC - 1.0V) to (VCC + 0.5V)
LVDS Output Voltage Levels
(PDO[15..0]±, PCLKO+, PCLKO-) .........-0.5V to (VCC + 0.5V)
Voltage at LOL, SYNC_ERR, RATESET, CLKSEL, REFCLK+,
REFCLK-, REFSET, LOS_IN, FIL .............-0.5V to (VCC + 0.5V)
Continuous Power Dissipation (TA = 85°C)
68-Lead QFN (derate 30.3mW/°C above +85°C) .......2.5W
Operating Temperature Range..................... 0°C to +85°C
Storage Temperature Range ...................-55°C to +150°C
Lead Temperature (soldering, 10s) .........................+300°C
Processing Temperature (die) .................................+400°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability
MAX3953 Features
· Serial Data Rate: 9.953Gbps/10.3125Gbps
· Clock Recovery with 1:16 Demultiplexer
· 0.75UIP-P High-Frequency Jitter Tolerance
· 16-Bit Parallel LVDS Output
· OIF-Compliant Parallel Interface
· Loss-of-Lock (LOL) Indicator
· Differential Input Range: 100mVP-P to 1.2VP-P
· Clock Holdover
· Reference Clock: Baud Rate/64 or Baud Rate/16
· Temperature Range: 0°C to +85°C
· 10mm × 10mm 68-Pin QFN Package
· Clock Recovery with 1:16 Demultiplexer
· 0.75UIP-P High-Frequency Jitter Tolerance
· 16-Bit Parallel LVDS Output
· OIF-Compliant Parallel Interface
· Loss-of-Lock (LOL) Indicator
· Differential Input Range: 100mVP-P to 1.2VP-P
· Clock Holdover
· Reference Clock: Baud Rate/64 or Baud Rate/16
· Temperature Range: 0°C to +85°C
· 10mm × 10mm 68-Pin QFN Package
MAX3953 Typical Application
·10Gbps Ethernet LAN
·10Gbps Ethernet WAN
·Add/Drop Multiplexers
·Digital Cross-Connects
·10Gbps Ethernet WAN
·Add/Drop Multiplexers
·Digital Cross-Connects

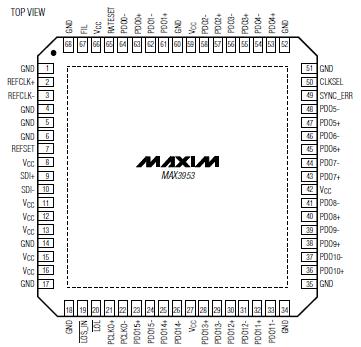

MAX3953 Connection Diagram
MAX3953
PDF/DataSheet Download
- Datasheet: MAX3953
- File Size: 318706 KB
- Manufacturer: Maxim
- Click here to Download
