Purchase MAX3967, In-stock MAX3967 From SeekIC.
MFG:MAXIM
Part Number: MAX3967
MFG: MAXIM
Description: The MAX3967 is a programmable LED driver for fiber optic transmitters operating at data rates up to 27...
- Table of contents:
MAX3967
-
Suppliers
DataSheet
General Description
MAX3967 General Description
The MAX3967 is a programmable LED driver for fiber optic transmitters operating at data rates up to 270Mbps. The circuit contains a high-speed current driver with programmable temperature coefficient (tempco), adjustments for LED prebias voltage, and a disable feature. The circuit accepts PECL data inputs, and operates from a single +2.97V to +5.5V power supply.
The SFP LED driver can switch up to 100mA into typical high-speed light-emitting diodes. As temperature increases, the device's modulation current increases with a tempco that is programmable from 2500ppm/°C to 12,000ppm/°C. The modulation current is programmed with a single external resistor.
The MAX3967's LED prebias voltage is programmable from 400mV to 925mV. The prebias circuit produces peaking current, which improves the LED switching speed.
Complementary current outputs help to maintain a constant supply current, reducing EMI and supply noise generated by the transmitter module. The MAX3967 is available in die form, or in a 4mm x 4mm, 24-pin thin QFN package.
MAX3967 Maximum Ratings
Supply Voltage at VCC, VCCOUT
(VEE, VEEOUT = 0V) .....................................................-0.5V to +7V
Current into OUT+, OUT- ...................................-40mA to +160mA
Differential Output Voltage (OUT+ to OUT-) ............-3.3V to +3.3V
Voltage at PB1, PB2, PB3,
IN+, IN-, OUT+, OUT-, TX_DISABLE...............-0.5V to (VCC + 0.5V)
Voltage at TCMIN, TCNOM, TC, MODSET, MON ...........-0.5V to +2V
Continuous Power Dissipation (TA = +85°C)
24-Lead Thin QFN (derate 20.8mW/C°
above +85°C).................................................................1354mW
Operating Junction Temperature Range...........-40°C to +150°C
Die Attach Temperature...................................................+400°C
Storage Temperature Range ...........................-50°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
(VEE, VEEOUT = 0V) .....................................................-0.5V to +7V
Current into OUT+, OUT- ...................................-40mA to +160mA
Differential Output Voltage (OUT+ to OUT-) ............-3.3V to +3.3V
Voltage at PB1, PB2, PB3,
IN+, IN-, OUT+, OUT-, TX_DISABLE...............-0.5V to (VCC + 0.5V)
Voltage at TCMIN, TCNOM, TC, MODSET, MON ...........-0.5V to +2V
Continuous Power Dissipation (TA = +85°C)
24-Lead Thin QFN (derate 20.8mW/C°
above +85°C).................................................................1354mW
Operating Junction Temperature Range...........-40°C to +150°C
Die Attach Temperature...................................................+400°C
Storage Temperature Range ...........................-50°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
MAX3967 Features
TX_DISABLE for SFP Compatibility
Single +2.97V to +5.5V Power Supply
Adjustable Temperature Compensation
Adjustable Modulation Current
Complementary Output Reduces Supply Noise
Programmable LED Prebias Voltage
Available in 24-Pin QFN or Die
Single +2.97V to +5.5V Power Supply
Adjustable Temperature Compensation
Adjustable Modulation Current
Complementary Output Reduces Supply Noise
Programmable LED Prebias Voltage
Available in 24-Pin QFN or Die
MAX3967 Typical Application
Multimode LED Transmitters
Fast Ethernet/FDDI
155Mbps LAN ATM Transceivers
ESCON Receivers
SFP Transceivers
Fast Ethernet/FDDI
155Mbps LAN ATM Transceivers
ESCON Receivers
SFP Transceivers

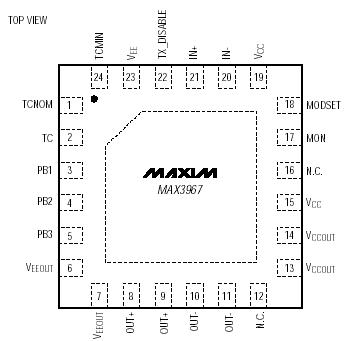

MAX3967 Connection Diagram
MAX3967
