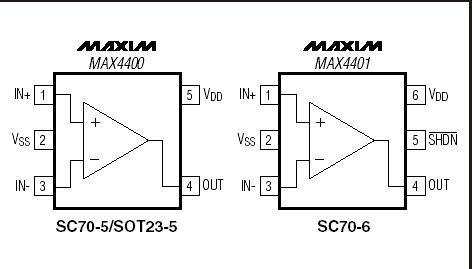

MAX4400MAX4403

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functionaloperation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure toabsolute maximum rating conditions for extended periods may affect device reliability.
Power-Supply Voltage (VDD to VSS) .........................-0.3V to +6V
All Other Pins ...................................(VSS - 0.3V) to (VDD + 0.3V)
Output Short-Circuit Duration
(OUT shorted to VSS or VDD).................................... Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 2.5mW/°C above +70°C)............. 200mW
6-Pin SC70 (derate 2.27mW/°C above +70°C)............181mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C)............571mW
8-Pin SOT23 (derate 7.52mW/°C above +70°C)..........602mW
8-Pin SO (derate 5.88mW/°C above +70°C)............... 471mW
14-Pin TSSOP (derate 8.33mW/°C above +70°C) ...... 667mW
14-Pin SO (derate 8.33mW/°C above +70°C)............. 667mW
Operating Temperature Range .....................-40°C to +125°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10s) ..............................+300°C
