General Description
MAX4450 General Description
The MAX4450 single and MAX4451 dual op amps are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail® outputs. Both devices operate from a +4.5V to +11V single supply or from ±2.25V to ±5.5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications).
The MAX4450/MAX4451 require only 6.5mA of quiescent supply current per op amp while achieving a 210MHz -3dB bandwidth and a 485V/s slew rate. Both devices are an excellent solution in low-power/lowvoltage systems that require wide bandwidth, such as video, communications, and instrumentation.
The MAX4450 is available in the ultra-small 5-pin SC70 package, while the MAX4451 is available in a spacesaving 8-pin SOT23.
MAX4450 Maximum Ratings
Supply Voltage (VCC to VEE)................................................+12V
IN_-, IN_+, OUT_..............................(VEE - 0.3V) to (VCC + 0.3V)
Output Short-Circuit Current to VCC or VEE ......................150mA
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70-5 (derate 2.5mW/°C above +70°C) ..........200mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C).........571mW
8-Pin SOT23-8 (derate 5.26mW/°C above +70°C).......421mW
8-Pin SO (derate 5.9mW/°C above +70°C) .................471mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10s) ..............................+300°C
IN_-, IN_+, OUT_..............................(VEE - 0.3V) to (VCC + 0.3V)
Output Short-Circuit Current to VCC or VEE ......................150mA
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70-5 (derate 2.5mW/°C above +70°C) ..........200mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C).........571mW
8-Pin SOT23-8 (derate 5.26mW/°C above +70°C).......421mW
8-Pin SO (derate 5.9mW/°C above +70°C) .................471mW
Operating Temperature Range .......................-40°C to +85°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10s) ..............................+300°C
MAX4450 Features
* Ultra-Small SC70-5, SOT23-5, and SOT23-8 Packages
* Low Cost
* High Speed
210MHz -3dB Bandwidth
55MHz 0.1dB Gain Flatness
485V/s Slew Rate
* Single +4.5V to +11V Operation
* Rail-to-Rail Outputs
* Input Common-Mode Range Extends Beyond VEE
* Low Differential Gain/Phase: 0.02%/0.08°
*Low Distortion at 5MHz
-65dBc SFDR
-63dB Total Harmonic Distorti
* Low Cost
* High Speed
210MHz -3dB Bandwidth
55MHz 0.1dB Gain Flatness
485V/s Slew Rate
* Single +4.5V to +11V Operation
* Rail-to-Rail Outputs
* Input Common-Mode Range Extends Beyond VEE
* Low Differential Gain/Phase: 0.02%/0.08°
*Low Distortion at 5MHz
-65dBc SFDR
-63dB Total Harmonic Distorti
MAX4450 Typical Application
Set-Top Boxes
Surveillance Video Systems
Battery-Powered Instruments
Video Line Driver
Analog-to-Digital Converter Interface
CCD Imaging Systems
Video Routing and Switching Systems
Digital Cameras
Surveillance Video Systems
Battery-Powered Instruments
Video Line Driver
Analog-to-Digital Converter Interface
CCD Imaging Systems
Video Routing and Switching Systems
Digital Cameras

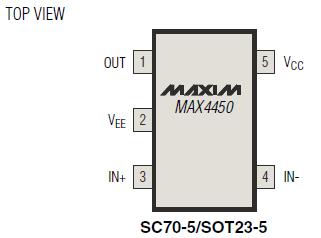

MAX4450 Connection Diagram
MAX4450
