General Description
MAX4480 General Description
The MAX4480MAX4483 low-cost, general-purpose op amps offer Rail-to-Rail® outputs, draw only 50A of quiescent current, and operate from a single +2.5V to +5.5V supply. For additional power conservation, the MAX4481 offers a low-power shutdown mode that reduces supply current to 0.5A (max) and puts the amplifier's output in a high-impedance state. These devices are unity-gain stable with capacitive loads up to 400pF. The MAX4480 MAX4483 are specified to +125°C, making them suitable for use in a variety of harsh environments, such as automotive applications.
The MAX4480 is a single amplifier offered in a tiny 5-pin SC70 package. The MAX4481 is a single amplifier with a low-power shutdown mode that reduces supply current to <0.5A and comes in a 6-pin SC70 package. The MAX4482 is a dual amplifier and comes in the space-saving 8-pin SOT23 package. The MAX4483 is a quad amplifier and comes in a 14-pin TSSOP package. All devices are specified for operation across the -40°C to +125°C automotive temperature range.
MAX4480 Maximum Ratings
Power-Supply Voltage (VDD to VSS) .............................-0.3V to +6V
All Other Pins ........................................(VSS - 0.3V) to (VDD + 0.3V)
Output Short-Circuit Duration
(OUT shorted to VSS or VDD).................................... Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 3.1mW/°C above +70°C)............. 247mW
6-Pin SC70 (derate 3.1mW/°C above +70°C)..............245mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C)............571mW
6-Pin SOT23 (derate 8.7mW/°C above +70°C)............696mW
8-Pin SOT23 (derate 9.1mW/°C above +70°C)............727mW
8-Pin MAX (derate 4.5mW/°C above +70°C) ............ 362mW
8-Pin SO (derate 5.88mW/°C above +70°C)............... 471mW
14-Pin TSSOP (derate 9.03mW/°C above +70°C) .......727mW
14-Pin SO (derate 8.33mW/°C above +70°C)............. 667mW
Operating Temperature Range ...........................-40°C to +125°C
Junction Temperature ...........................................................150°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10s) .....................................+300°C
All Other Pins ........................................(VSS - 0.3V) to (VDD + 0.3V)
Output Short-Circuit Duration
(OUT shorted to VSS or VDD).................................... Continuous
Continuous Power Dissipation (TA = +70°C)
5-Pin SC70 (derate 3.1mW/°C above +70°C)............. 247mW
6-Pin SC70 (derate 3.1mW/°C above +70°C)..............245mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C)............571mW
6-Pin SOT23 (derate 8.7mW/°C above +70°C)............696mW
8-Pin SOT23 (derate 9.1mW/°C above +70°C)............727mW
8-Pin MAX (derate 4.5mW/°C above +70°C) ............ 362mW
8-Pin SO (derate 5.88mW/°C above +70°C)............... 471mW
14-Pin TSSOP (derate 9.03mW/°C above +70°C) .......727mW
14-Pin SO (derate 8.33mW/°C above +70°C)............. 667mW
Operating Temperature Range ...........................-40°C to +125°C
Junction Temperature ...........................................................150°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10s) .....................................+300°C
MAX4480 Features
Single +2.5V to +5.5V Supply Voltage Range
50A Quiescent Current per Amplifier
0.5A (max) Shutdown Mode (MAX4481)
Available in Space-Saving Packages
5-Pin SC70 (MAX4480)
6-Pin SC70 (MAX4481)
8-Pin SOT23 (MAX4482)
105dB AVOL with 5k Load
0.005% THD with 100k Load
Rail-to-Rail Output Voltage Swing
3.0mA of Sink and Source Load Current
Unity-Gain Stable up to CLOAD = 400pF
50A Quiescent Current per Amplifier
0.5A (max) Shutdown Mode (MAX4481)
Available in Space-Saving Packages
5-Pin SC70 (MAX4480)
6-Pin SC70 (MAX4481)
8-Pin SOT23 (MAX4482)
105dB AVOL with 5k Load
0.005% THD with 100k Load
Rail-to-Rail Output Voltage Swing
3.0mA of Sink and Source Load Current
Unity-Gain Stable up to CLOAD = 400pF
MAX4480 Typical Application
Single-Supply Zero-Crossing Detectors
Instruments and Terminals
Portable Communications
Electronic Ignition Modules
Infrared Receivers
Sensor Signal Detection
Instruments and Terminals
Portable Communications
Electronic Ignition Modules
Infrared Receivers
Sensor Signal Detection

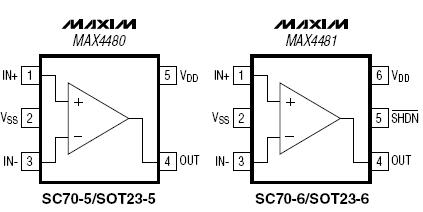

MAX4480 Connection Diagram
MAX4480
