Part Number: MAX4486
Description: The MAX4484/MAX4486/MAX4487 single/dual/quad low-cost general-purpose op amps operate from a sin-gle +2.7V to +5.5V ...
- Table of contents:
MAX4486
-
Suppliers
DataSheet
General Description
MAX4486 General Description
The MAX4484/MAX4486/MAX4487 single/dual/quad low-cost general-purpose op amps operate from a sin-gle +2.7V to +5.5V supply. The op amps are unity-gainstable with a 7MHz gain-bandwidth product, capable ofdriving an external 2kΩload with Rail-to-Rail®outputswing. The amplifiers are stable with capacitive loads of up to 100pF. The MAX4484/MAX4486/MAX4487 are specified from -40°C to +125°C, making them suitable for a variety of harsh environments, such as automotive.
The single MAX4484 is available in the ultra-small 5-pinSC70, while the dual MAX4486 is packaged in the space-saving 8-pin SOT23 and µMAX packages. The quad MAX4487 is available in the 14-pin SO and TSSOP packages.
MAX4486 Maximum Ratings
Power Supply Voltage (VDDto VSS).......................-0.3V to +6V
All Other Pins.................................(VSS - 0.3V) to (VDD + 0.3V)
Output Short-Circuit Duration (OUT shorted to VDDor
VSS)........................................................Continuous
Continuous Power Dissipation (TA= +70°C)
5-Pin SC70 (derate 3.1mW/°C above +70°C)..............247mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C) ...........571mW
8-Pin SOT23 (derate 9.1mW/°C above +70°C)............727mW
8-Pin SO (derate 5.88mW/°C above +70°C)................471mW
8-Pin µMAX (derate 4.5mW//°C above +70°C)............362mW
14-Pin TSSOP (derate 9.1mW/°C above +70°C)..........727mW
14-Pin SO (derate 8.33mW/°C above +70°C)..............667mW
Operating Temperature Range.....................-55°C to +125°C
Junction Temperature..................................................+150°C
Storage Temperature Range.........................-65°C to +150°C
Lead Temperature (soldering, 10s)..............................+300°C
MAX4486 Features
7MHz Unity-Gain Stable Bandwidth
Stable for Capacitive Loads up to 100pF
+2.7V to +5.5V Single-Supply Voltage Range
Ground-Sensing Inputs
Outputs Swing Rail-to-Rail
No Phase Reversal for Overdriven Inputs
85dB AVOLwith 2kΩLoad
0.01% THD with 2kΩLoad
Available in Space-Saving Packages
5-Pin SC70 (MAX4484)
8-Pin SOT23 (MAX4486)
Stable for Capacitive Loads up to 100pF
+2.7V to +5.5V Single-Supply Voltage Range
Ground-Sensing Inputs
Outputs Swing Rail-to-Rail
No Phase Reversal for Overdriven Inputs
85dB AVOLwith 2kΩLoad
0.01% THD with 2kΩLoad
Available in Space-Saving Packages
5-Pin SC70 (MAX4484)
8-Pin SOT23 (MAX4486)
MAX4486 Typical Application
Single-Supply Zero-Crossing Detector
Instruments and Terminals
Portable Communicators
Electronic Ignition Modules
Infrared Receivers for Remote Controls
Sensor Signal Detection
Instruments and Terminals
Portable Communicators
Electronic Ignition Modules
Infrared Receivers for Remote Controls
Sensor Signal Detection

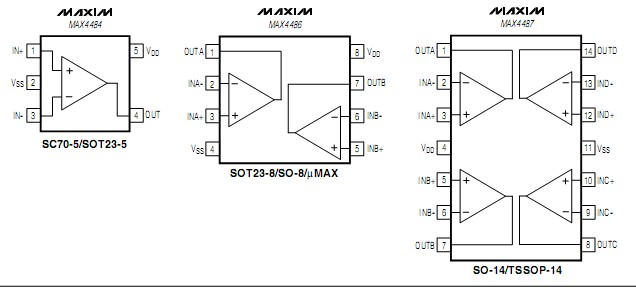

MAX4486 Connection Diagram
MAX4486
PDF/DataSheet Download
- Datasheet: MAX4486
- File Size: 376331 KB
- Manufacturer: Maxim
- Click here to Download
