Part Number: MAX4504
Description: The MAX4503/MAX4504 are low-voltage, dual-supply, single-pole/single-th...
- Table of contents:
MAX4504
-
Suppliers
DataSheet
General Description
MAX4504 General Description
The MAX4503/MAX4504 are low-voltage, dual-supply, single-pole/single-throw (SPST), CMOS analog switches. The MAX4503 is normally open(NO).the MAX4504is normally closed (NC).
These CMOS switches can operate continuously with dual supplies between ±1.V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C or 10nA at +85°C.
The digital input is CMOS-logic compatible when using ±5V supplies. A unique logic input architecture allows this even though the parts have no ground pin.
For single-supply operation, use the MAX4501/MAX4502, which are pin-for-pin equivalents.
MAX4504 Maximum Ratings
(Voltages Referenced to V-)V+.......................................-0.3V, +13V
Voltage into Any Terminal (Note 1) ..............-0.3V to (V+ + 0.3V) or
±10mA (whichever occurs first)
Continuous Current into Any Terminal..................................±10mA
Peak Current, NO_ or COM_
(pulsed at 1ms,10% duty cycle).......................................±20mA
Continuous Power Dissipation (TA = +70°C)
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ....727mW
8-Pin SO (derate 5.88mW/°C above +70°C).................471mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C) ..........571mW
8-Pin CERDIP (derate 8.00mW/°C above +70°C)...........640mW
Operating Temperature Ranges
MAX4503C_ _/MAX4504C_ _ ................................0°C to +70°C
MAX4503E_ _/MAX4504E_ _ .............................-40°C to +85°C
MAX4503MJA/MAX4504MJA ..............................-55°C to +125°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10sec) .................................+300°C
Voltage into Any Terminal (Note 1) ..............-0.3V to (V+ + 0.3V) or
±10mA (whichever occurs first)
Continuous Current into Any Terminal..................................±10mA
Peak Current, NO_ or COM_
(pulsed at 1ms,10% duty cycle).......................................±20mA
Continuous Power Dissipation (TA = +70°C)
8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ....727mW
8-Pin SO (derate 5.88mW/°C above +70°C).................471mW
5-Pin SOT23-5 (derate 7.1mW/°C above +70°C) ..........571mW
8-Pin CERDIP (derate 8.00mW/°C above +70°C)...........640mW
Operating Temperature Ranges
MAX4503C_ _/MAX4504C_ _ ................................0°C to +70°C
MAX4503E_ _/MAX4504E_ _ .............................-40°C to +85°C
MAX4503MJA/MAX4504MJA ..............................-55°C to +125°C
Storage Temperature Range ...............................-65°C to +150°C
Lead Temperature (soldering, 10sec) .................................+300°C
MAX4504 Features
Available in SOT23-5 Package
Dual-Supply Operation from ±1V to ±6V
Guaranteed On-Resistance:250 with ±5V Supplies
Guaranteed Low Off-Leakage Currents:
1nA at +25°C
10nA at +85°C
Guaranteed Low On-Leakage Currents:
2nA at +25°C
20nA at +85°C
Guaranteed Low Charge Injection: 10pC Max
Fast Switching Speed: tON = 150ns, tOFF = 100ns
CMOS-Logic Compatible Input
Dual-Supply Operation from ±1V to ±6V
Guaranteed On-Resistance:250 with ±5V Supplies
Guaranteed Low Off-Leakage Currents:
1nA at +25°C
10nA at +85°C
Guaranteed Low On-Leakage Currents:
2nA at +25°C
20nA at +85°C
Guaranteed Low Charge Injection: 10pC Max
Fast Switching Speed: tON = 150ns, tOFF = 100ns
CMOS-Logic Compatible Input
MAX4504 Typical Application
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
Cellular Phones
PCMCIA Cards
Modems
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
Cellular Phones
PCMCIA Cards
Modems

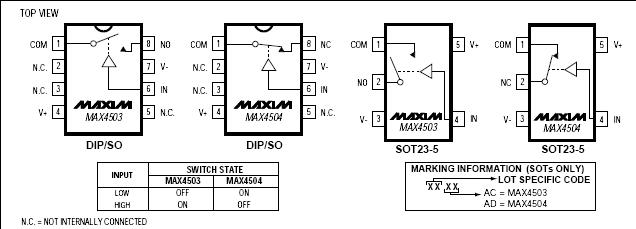

MAX4504 Connection Diagram
MAX4504
